KL-BC103 Electric Hospital Bed — Compact 5-Function Ward Bed with 240 kg Capacity
Keling KL-BC103 5-function electric hospital bed: 240 kg load, backrest 70°, knee-rest 30°, height 450–760 mm, Trendelenburg 12°. Compact ward bed from an ISO 13485 factory.
- Product type
- Electric hospital bed (5-function)
- Safe working load
- 240 kg
- Backrest adjustment
- 70±10°
- Knee-rest adjustment
- 30±10°
Request pricing for KL-BC103
FOB/CIF quotation, lead time, container loading plan and OEM options — from the Shanghai export office, usually within one business day.
What is the Keling KL-BC103?

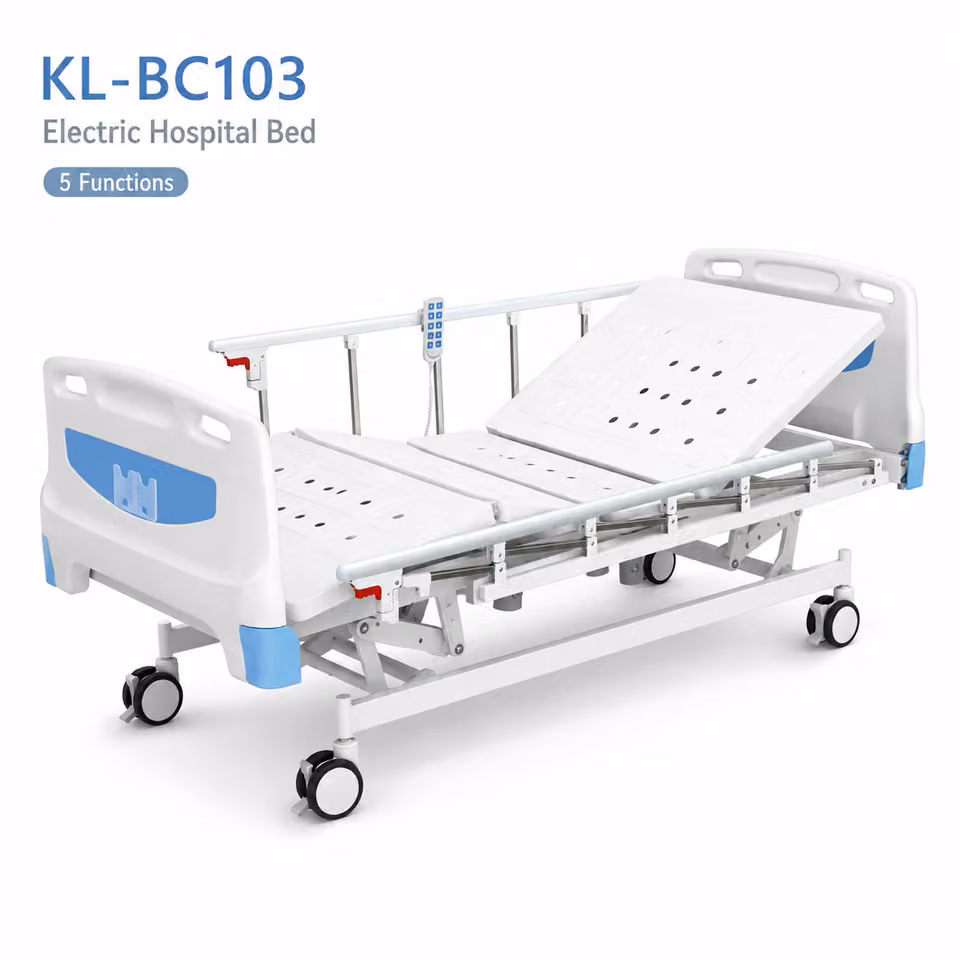

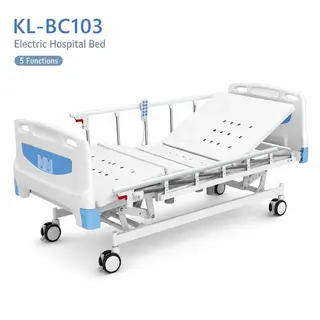

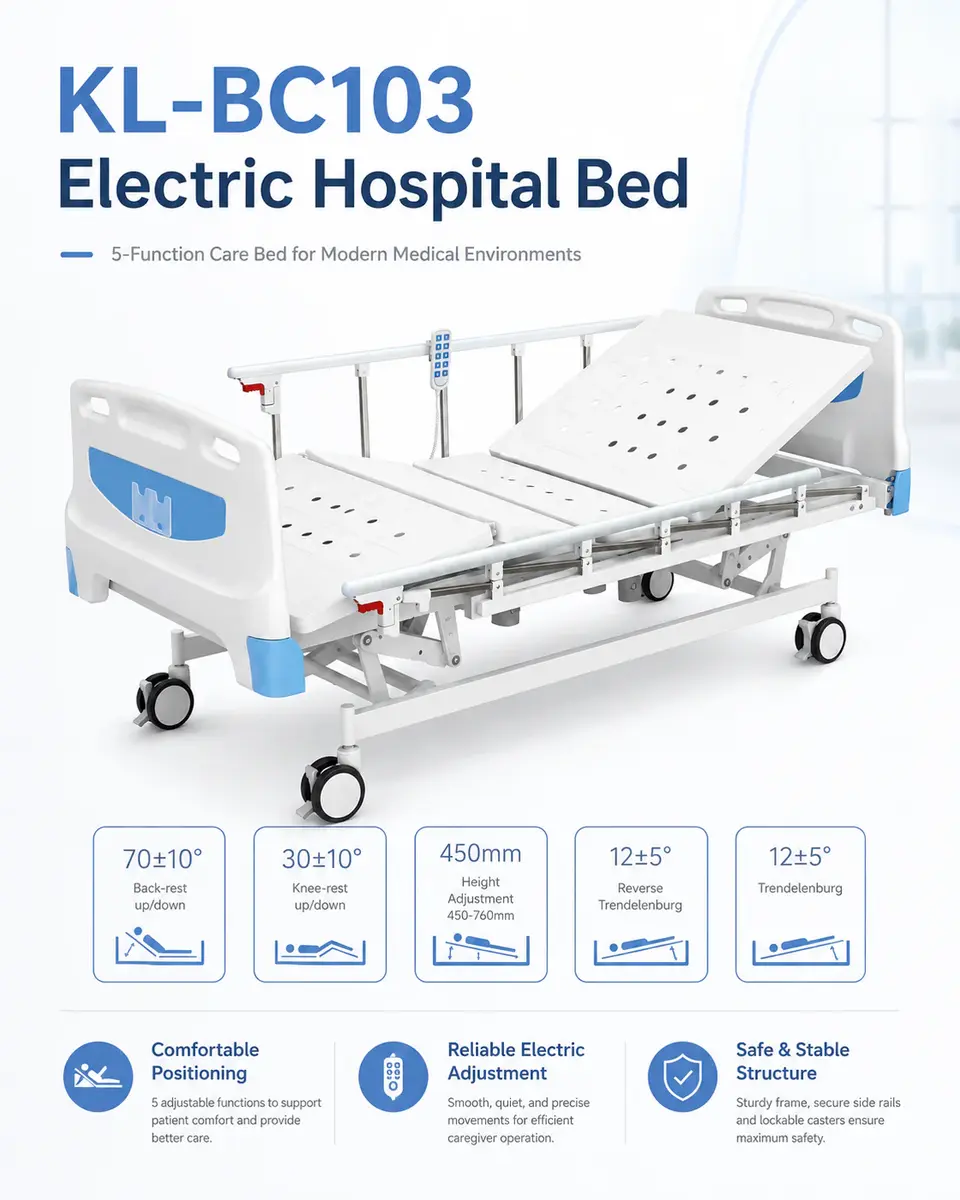

The Keling KL-BC103 is a 5-function electric hospital bed with backrest adjustment to 70±10°, knee-rest to 30±10°, height range 450–760 mm, Trendelenburg and reverse Trendelenburg of 12±5°, and a 240 kg safe working load. It measures 2150 × 960 mm overall — a compact footprint suited to general wards and clinics. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).
Overview
The KL-BC103 electric hospital bed delivers five independently adjustable functions in a compact 960 mm-wide external footprint, making it well-suited to standard ward bays and single-occupancy rooms where floor space is at a premium. Electric actuation covers backrest elevation, knee-rest elevation, bed height, Trendelenburg tilt and reverse Trendelenburg tilt, enabling full postural management without manual crank operation.
The bed's 450–760 mm height range allows clinicians to lower the bed close to floor level for patient safety and raises it to a working height that reduces nursing back strain during care procedures. The 30±10° knee-rest elevation works in combination with the backrest to relieve pressure along the patient's spine and prevent sliding, which is particularly beneficial during long-term inpatient stays and for patients at risk of pressure injuries.
With a 240 kg rated load and a 1925 × 900 mm bed surface, the KL-BC103 accommodates a broad patient population across general medicine, surgical recovery and elderly care wards. Its straightforward 5-function layout, without additional optional modules, makes it a cost-effective standard ward bed suitable for facilities equipping large numbers of beds.
At a glance

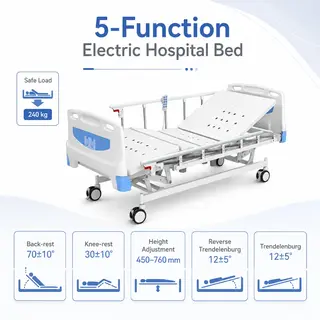

- The Keling KL-BC103 is a 5-function electric hospital bed designed for general ward and clinical environments.
- Backrest adjusts electrically to 70±10°; knee-rest adjusts independently to 30±10°.
- Height range is 450–760 mm, providing ergonomic access for nursing staff and low-height transfer capability.
- Trendelenburg and reverse Trendelenburg tilt each reach 12±5° for postural and clinical positioning.
- Safe working load is 240 kg; external dimensions are 2150 × 960 × (450–760) mm; bed surface is 1925 × 900 mm.
- The KL-BC103 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.
Technical specifications
| Model | KL-BC103 |
|---|---|
| Product type | Electric hospital bed (5-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 30±10° |
| Height adjustment | 450–760 mm |
| Reverse Trendelenburg | 12±5° |
| Trendelenburg | 12±5° |
| Safe working load | 240 kg |

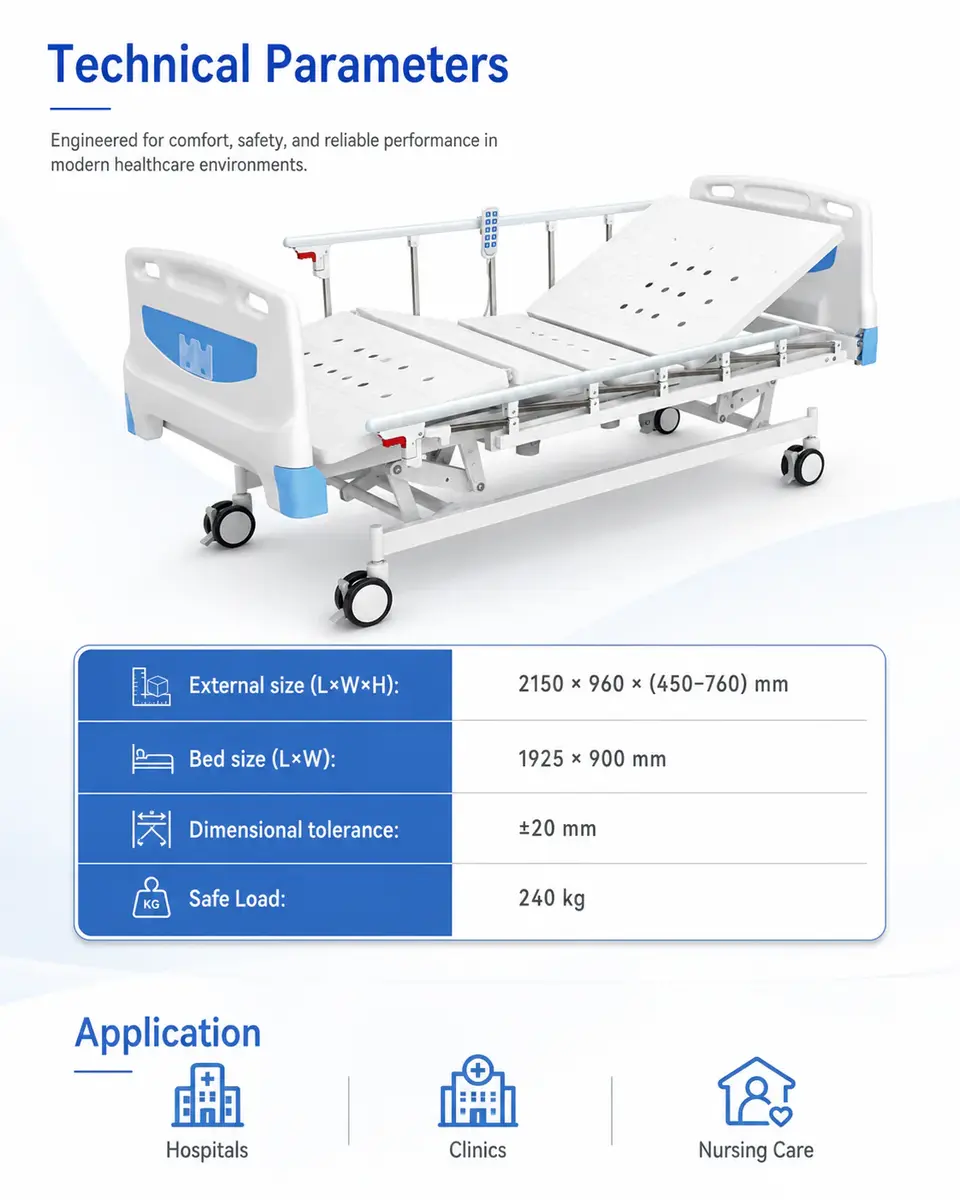

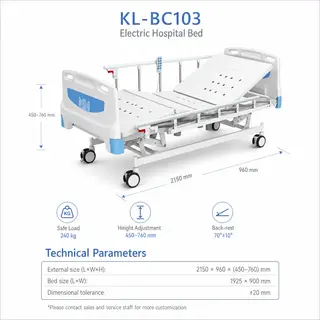

| External size (L × W × H) | 2150 × 960 × (450–760) mm |
| Bed surface size (L × W) | 1925 × 900 mm |
| Dimensional tolerance | ±20 mm |
Specifications are subject to continuous improvement and dimensional tolerances may apply. Ask our export team for the signed datasheet before issuing a purchase order or tender document. Specification data last reviewed ; source: Jiangsu Keling Medical Appliances Co., Ltd. engineering datasheets.
Key features

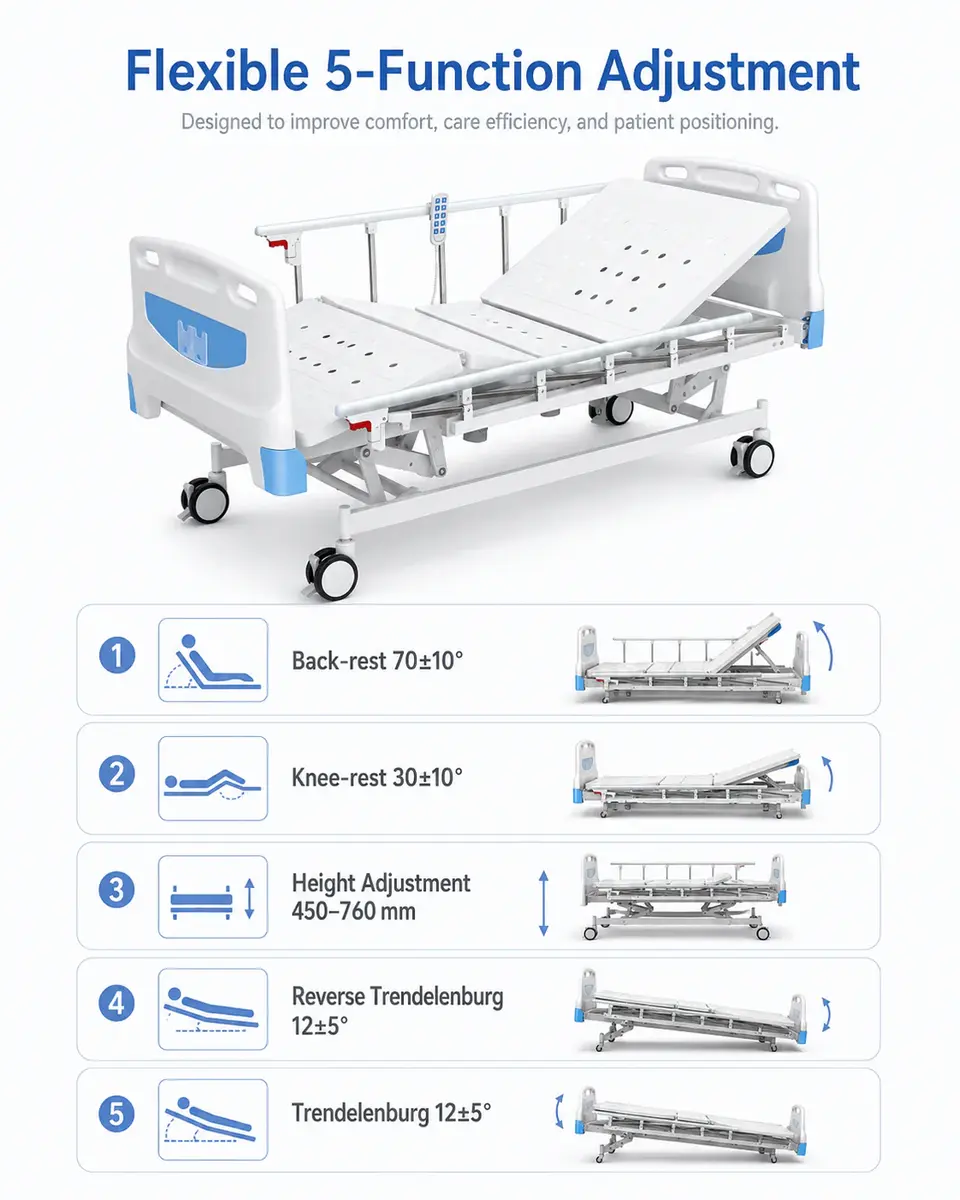

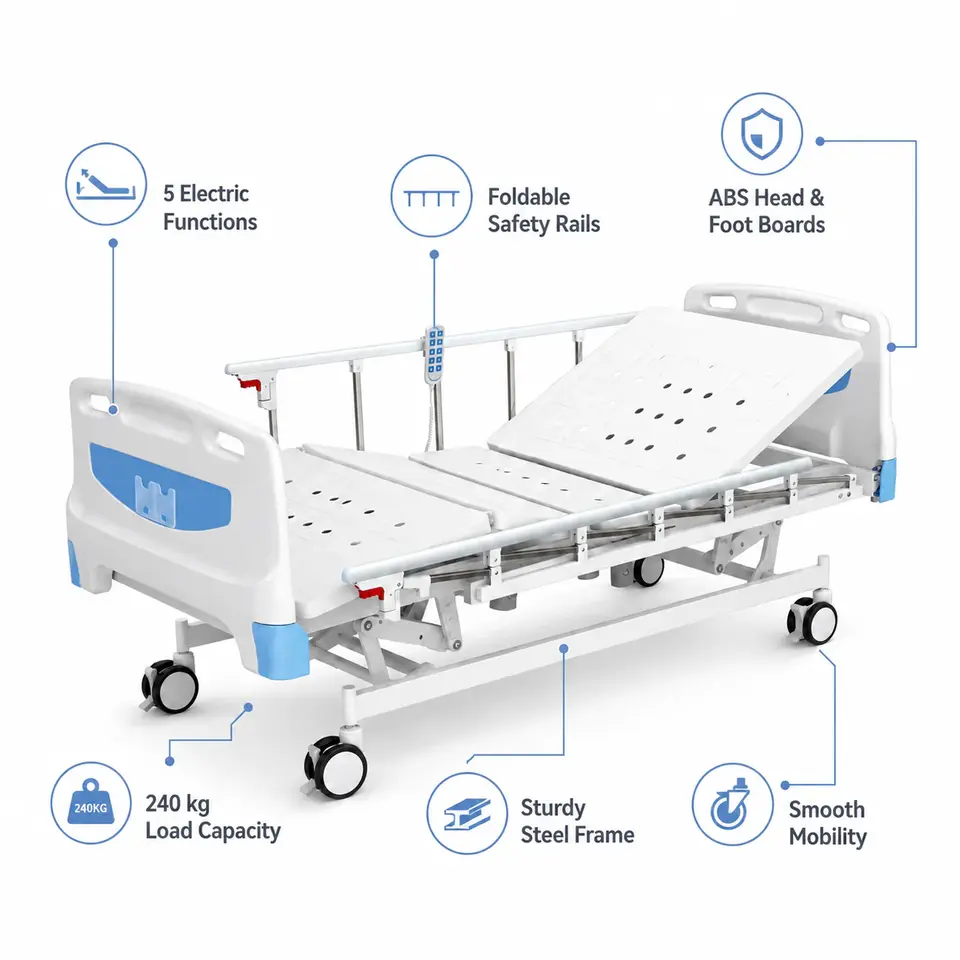

- 5-Function electric actuationmotorized control of backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg.
- Backrest to 70±10°electrically adjustable for respiratory, feeding and therapeutic positioning.
- Knee-rest to 30±10°independent knee elevation reduces patient sliding and supports circulatory positioning.
- Height range 450–760 mm310 mm electric travel for transfer safety and nursing ergonomics.
- Trendelenburg / reverse Trendelenburg 12±5°bidirectional tilt for postural drainage, shock management and surgical preparation.
- 240 kg safe working loadrobust structural capacity for a broad inpatient population.
- Compact external width 960 mmefficient use of ward floor space without compromising patient surface width.
Clinical applications

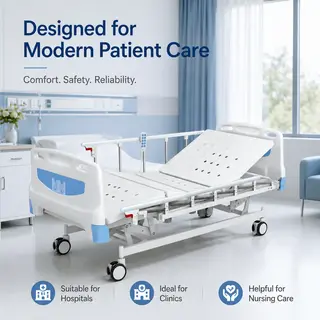

The KL-BC103 is intended for general medical wards, surgical inpatient wards, post-operative recovery rooms, rehabilitation wards and long-term care facilities. Its compact footprint and full 5-function electric capability make it a versatile standard-issue ward bed for facilities deploying beds at scale.
Frequently asked questions about the KL-BC103
What is the Keling KL-BC103 electric hospital bed used for?
The KL-BC103 is a 5-function electric hospital bed for general inpatient ward use, providing electrically controlled backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg adjustment. It supports patient positioning across nursing care, post-operative recovery and long-term inpatient stays.
How does the KL-BC103 compare to the KL-BC103-A?
Both the KL-BC103 and KL-BC103-A share the same technical specifications including 5-function electric actuation, 240 kg load, 450–760 mm height range and 2150 × 960 mm external dimensions. The primary difference lies in the bed's appearance — the KL-BC103-A features a distinct design style, offering facilities a visual choice while retaining identical functional performance.
What are the external and bed surface dimensions of the KL-BC103?
The KL-BC103 has an external size of 2150 × 960 × (450–760) mm and a bed surface of 1925 × 900 mm. Its 960 mm external width is narrower than some comparable models, helping to conserve ward floor space while maintaining a standard 900 mm usable surface width.
Is the KL-BC103 available for wholesale or export purchase?
Yes. Keling Medical exports hospital beds to hospitals and distributors worldwide, with wholesale and project-volume ordering available through its Shanghai sales and export center. Contact Keling Medical via https://www.keling-hospitalbed.com to request a quotation or technical datasheet.
