KL-BC101 Electric Hospital Bed — 5-Function ICU Bed with CPR Instant Release
Keling KL-BC101 5-function electric hospital bed: 240 kg capacity, backrest 70°, height 480–760 mm, CPR instant release, nurse lock. ICU-grade bed from an ISO 13485 manufacturer.
- Product type
- Electric hospital bed (5-function)
- Safe working load
- 240 kg
- Backrest adjustment
- 70±10°
- Knee-rest adjustment
- 40±10°
Request pricing for KL-BC101
FOB/CIF quotation, lead time, container loading plan and OEM options — from the Shanghai export office, usually within one business day.
What is the Keling KL-BC101?

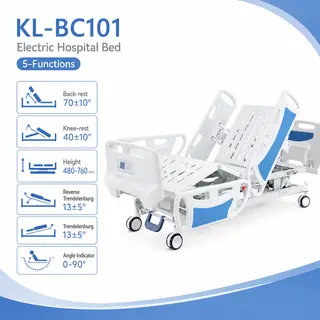

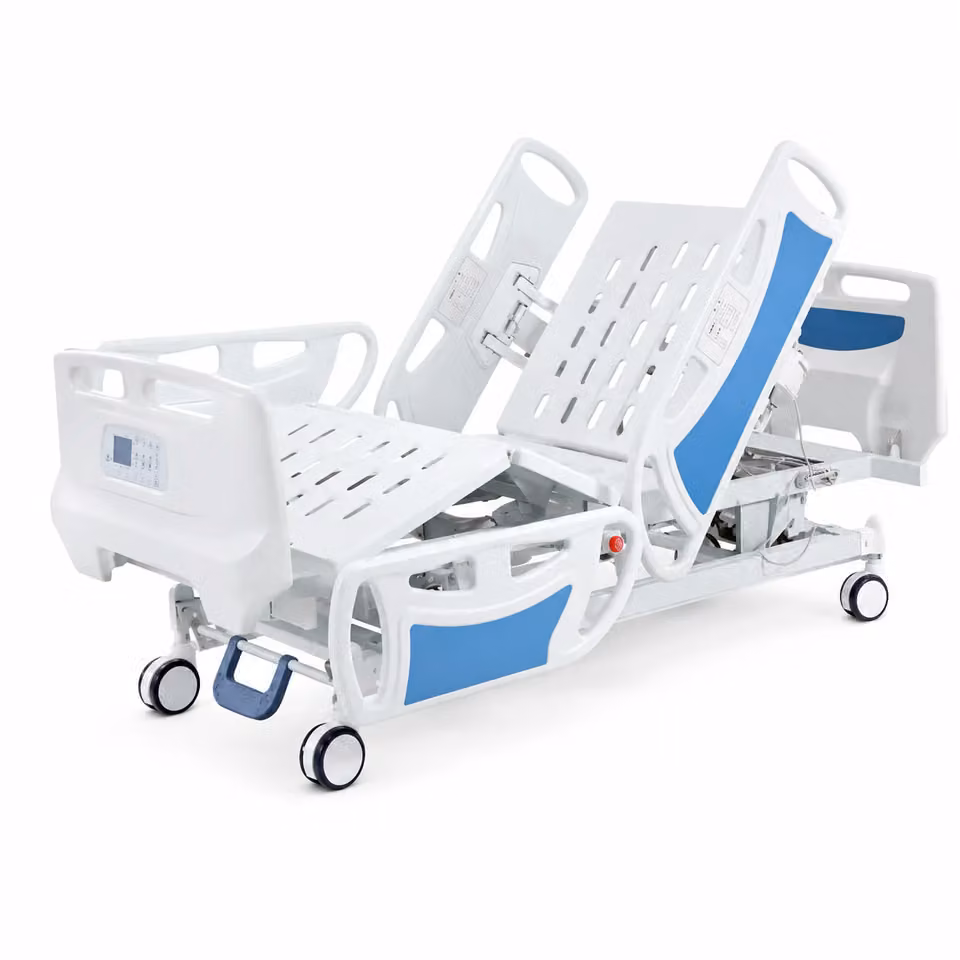

The Keling KL-BC101 is a 5-function electric hospital bed with backrest adjustment to 70±10°, knee-rest to 40±10°, height range 480–760 mm, Trendelenburg/reverse Trendelenburg tilt of 13±5°, CPR instant release and a 240 kg safe working load. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for ICUs, general wards and hospitals worldwide.
Overview
The KL-BC101 electric hospital bed is a full-featured 5-function platform built for demanding inpatient environments including intensive care units, high-dependency wards and surgical recovery rooms. Electric actuation across all five adjustment axes — backrest, knee-rest, bed height, Trendelenburg and reverse Trendelenburg — lets nursing staff reposition patients precisely and safely without manual effort. The 0–90° integrated angle indicator provides at-a-glance confirmation of backrest position, reducing the risk of positioning errors during ventilator care or post-operative recovery.

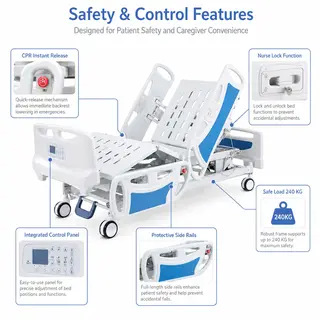

Patient safety features are built into the core design. The CPR instant release function drops the backrest to flat in a single action, eliminating precious seconds during cardiac events. The nurse lock function prevents accidental patient-side adjustment of bed controls, while side rail integration keeps patients secure. A safe working load of 240 kg accommodates a wide patient population without compromising structural integrity.
For facilities that need extended operational continuity, the optional battery power storage module keeps all electric functions active during power interruptions, and an optional integrated weighing system allows direct bedside patient weight monitoring — eliminating the need to transfer patients to dedicated scales. The KL-BC101 is suited to high-acuity environments where every positioning adjustment and clinical measurement matters.
At a glance

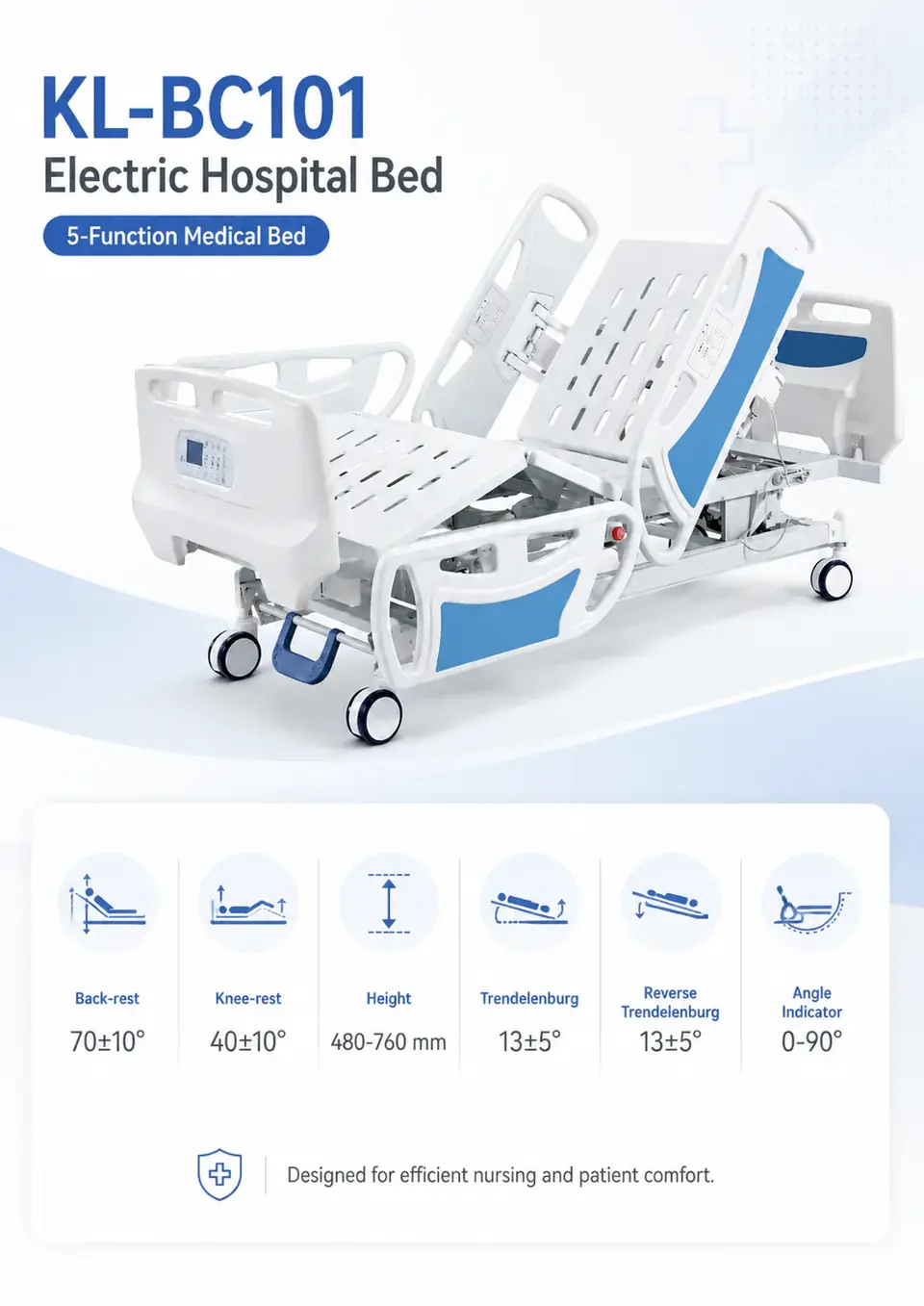

- The Keling KL-BC101 is a 5-function electric hospital bed designed for ICU and general ward use.
- Backrest adjusts to 70±10° and knee-rest adjusts to 40±10° via independent electric drives.
- Height adjustment spans 480–760 mm (480 mm range), making transfers and care tasks easier for nursing staff.
- Trendelenburg and reverse Trendelenburg tilt each reach 13±5°, enabling postural drainage and anti-shock positioning.
- The KL-BC101 features CPR instant release, a nurse lock function and an integrated 0–90° angle indicator.
- Safe working load is 240 kg; optional integrated weighing system and battery power storage are available.
- External dimensions are 2160 × 1070 × (480–760) mm; bed surface is 1930 × 900 mm.

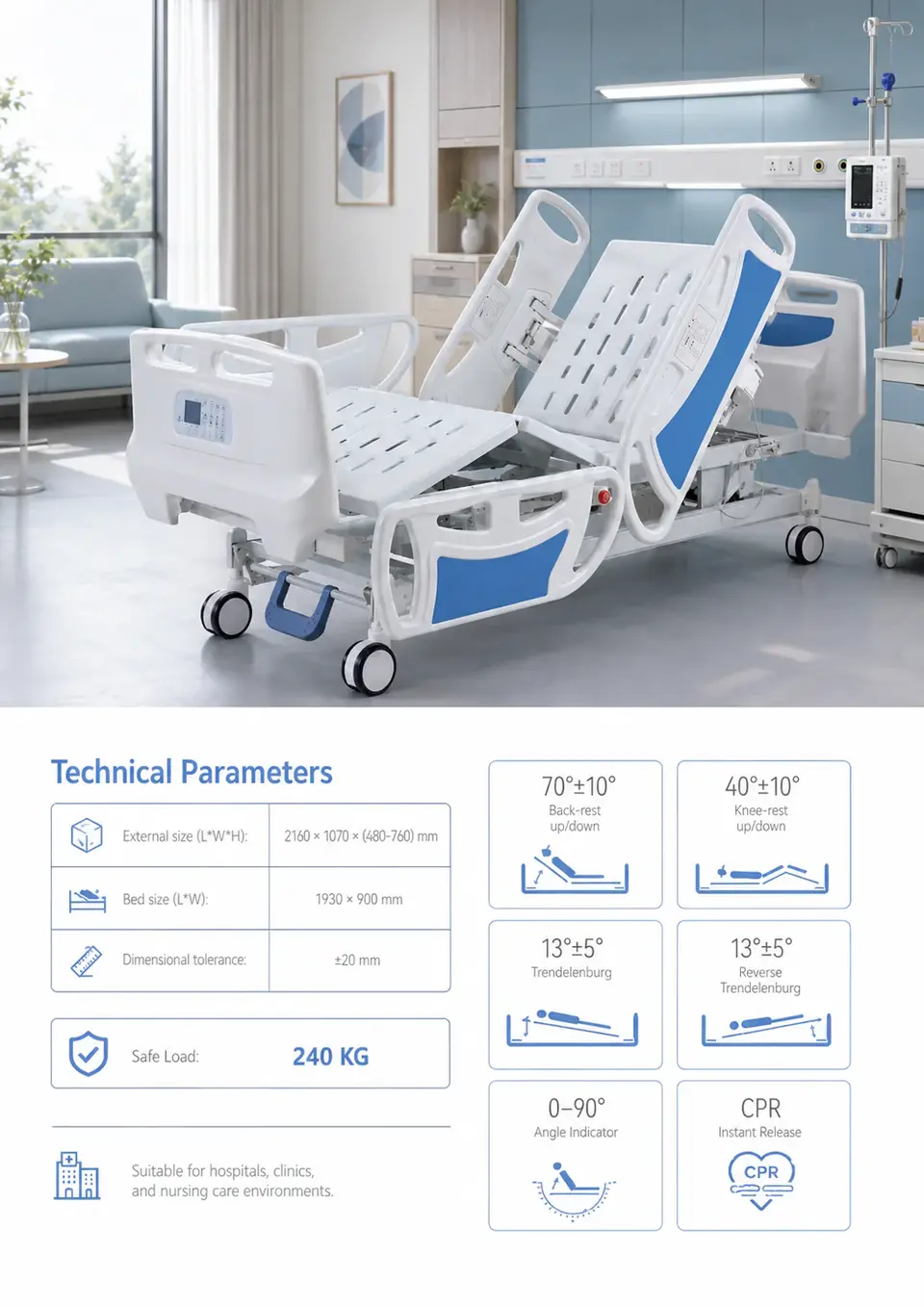

Technical specifications
| Model | KL-BC101 |
|---|---|
| Product type | Electric hospital bed (5-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 40±10° |
| Height adjustment | 480–760 mm |
| Reverse Trendelenburg | 13±5° |
| Trendelenburg | 13±5° |
| Angle indicator | 0–90° |
| CPR release | Instant release |
| Nurse lock | Yes |
| Safe working load | 240 kg |

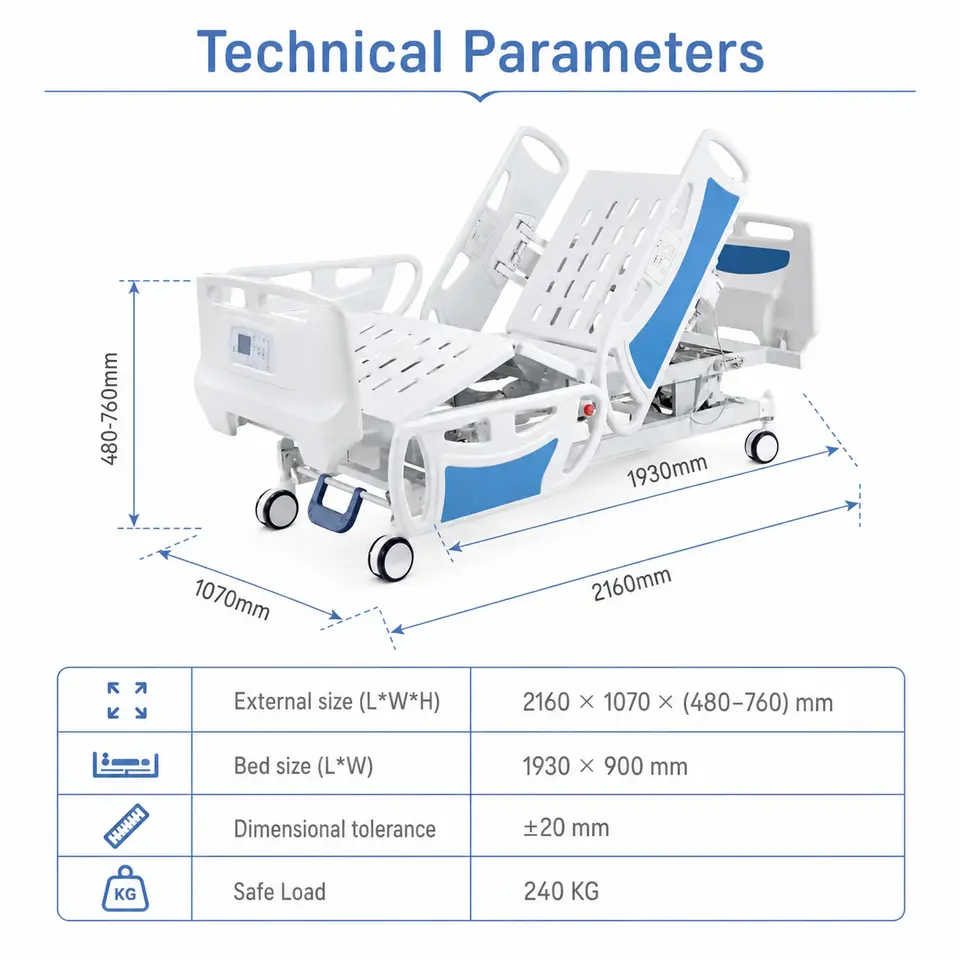

| External size (L × W × H) | 2160 × 1070 × (480–760) mm |
| Bed surface size (L × W) | 1930 × 900 mm |
| Dimensional tolerance | ±20 mm |
| Optional accessories | Weighing system, battery power storage |
Specifications are subject to continuous improvement and dimensional tolerances may apply. Ask our export team for the signed datasheet before issuing a purchase order or tender document. Specification data last reviewed ; source: Jiangsu Keling Medical Appliances Co., Ltd. engineering datasheets.
Key features

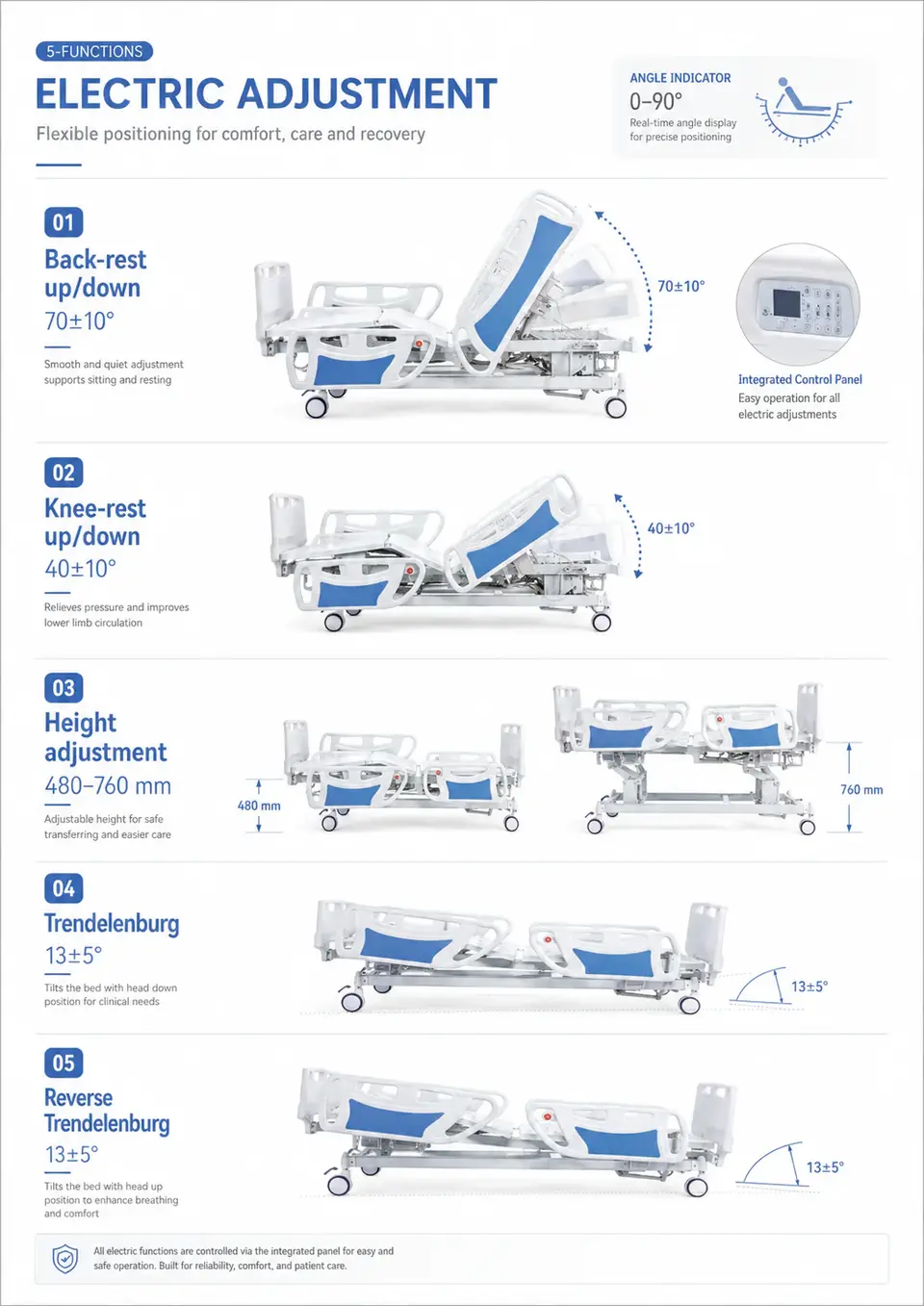

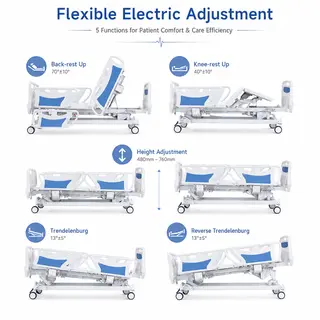

- 5-Function electric actuationindependent electric drives for backrest, knee-rest, bed height, Trendelenburg and reverse Trendelenburg tilt; precise positioning across all axes.
- Backrest up to 70±10°wide adjustment range accommodates respiratory support, feeding and therapeutic positions.
- Knee-rest up to 40±10°independent knee elevation reduces shear forces and supports post-operative lower-limb positioning.
- Height range 480–760 mmwide electric height adjustment simplifies patient transfers and enables nursing tasks at ergonomic working height.
- Trendelenburg / reverse Trendelenburg 13±5°both tilt directions support postural drainage, anti-shock positioning and surgical prep.

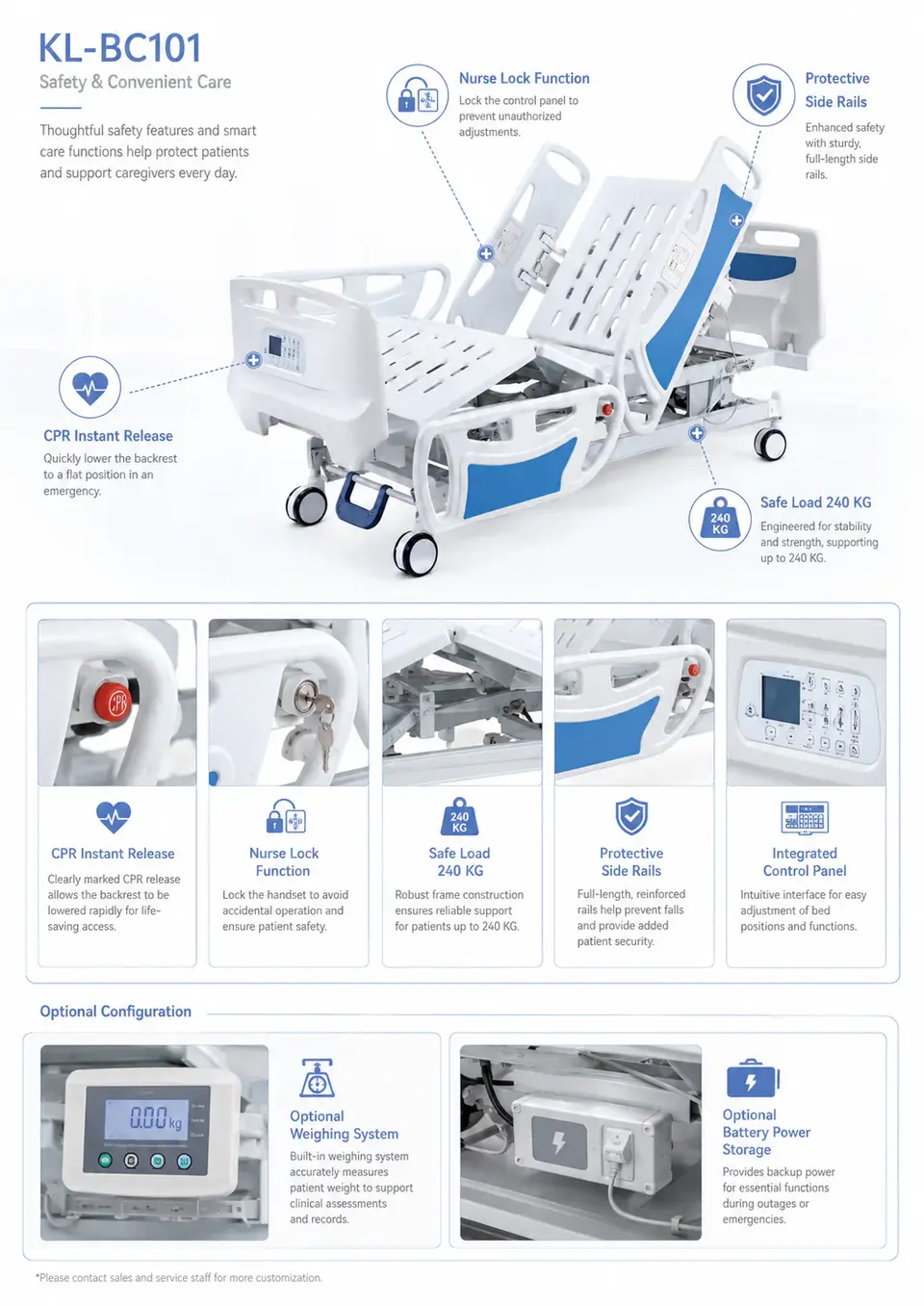

- CPR instant releaseone-action backrest drop to flat position for immediate cardiac resuscitation access.
- Nurse lock functiondisables patient-side controls to prevent unintended adjustments in high-dependency settings.
- 0–90° angle indicatorcontinuous visual readout of backrest angle visible to clinical staff at a glance.
- Optional weighing system & battery backupintegrated weight monitoring and uninterrupted electric function during power outages.
Clinical applications
The KL-BC101 is suited to the most demanding inpatient settings: intensive care units (ICU), high-dependency units (HDU), cardiac care units (CCU), post-operative surgical recovery wards, general medical and surgical wards, and long-term care facilities. The CPR function and nurse lock make it especially appropriate for acute-care environments where patient safety and rapid emergency response are paramount.
Frequently asked questions about the KL-BC101
What is the Keling KL-BC101 electric hospital bed used for?
The KL-BC101 is a 5-function electric hospital bed designed for ICU and inpatient ward care. It provides electrically controlled backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg adjustment, supporting patient positioning for respiratory care, post-operative recovery, pressure-injury prevention and emergency resuscitation.
What are the height range and tilt angles of the KL-BC101?
The KL-BC101 has an electric height range of 480–760 mm. Trendelenburg and reverse Trendelenburg each reach 13±5°. The backrest adjusts to 70±10° and the knee-rest to 40±10°. An integrated 0–90° angle indicator displays the current backrest position.
Does the KL-BC101 include a CPR release function?
Yes. The KL-BC101 features a CPR instant release that drops the backrest to a flat position in a single action, enabling immediate chest compressions without delay. The nurse lock function can also be engaged to prevent unintended patient-side control input.
Can the KL-BC101 be ordered in bulk or with OEM configuration?
Yes. Keling Medical is an export-oriented manufacturer supplying hospitals and medical distributors worldwide and supports wholesale, project and OEM orders through its Shanghai sales and export center. Contact Keling Medical via https://www.keling-hospitalbed.com for pricing and specifications.
