KL-BC103-A Electric Hospital Bed — 5-Function ICU Bed with 240 kg Load and 12° Tilt
Keling KL-BC103-A 5-function electric hospital bed: 240 kg load, backrest 70°, knee-rest 30°, height 450–760 mm, Trendelenburg 12°. ISO 13485 manufacturer.
- Product type
- Electric hospital bed (5-function)
- Safe working load
- 240 kg
- Backrest adjustment
- 70±10°
- Knee-rest adjustment
- 30±10°
Request pricing for KL-BC103-A
FOB/CIF quotation, lead time, container loading plan and OEM options — from the Shanghai export office, usually within one business day.
What is the Keling KL-BC103-A?

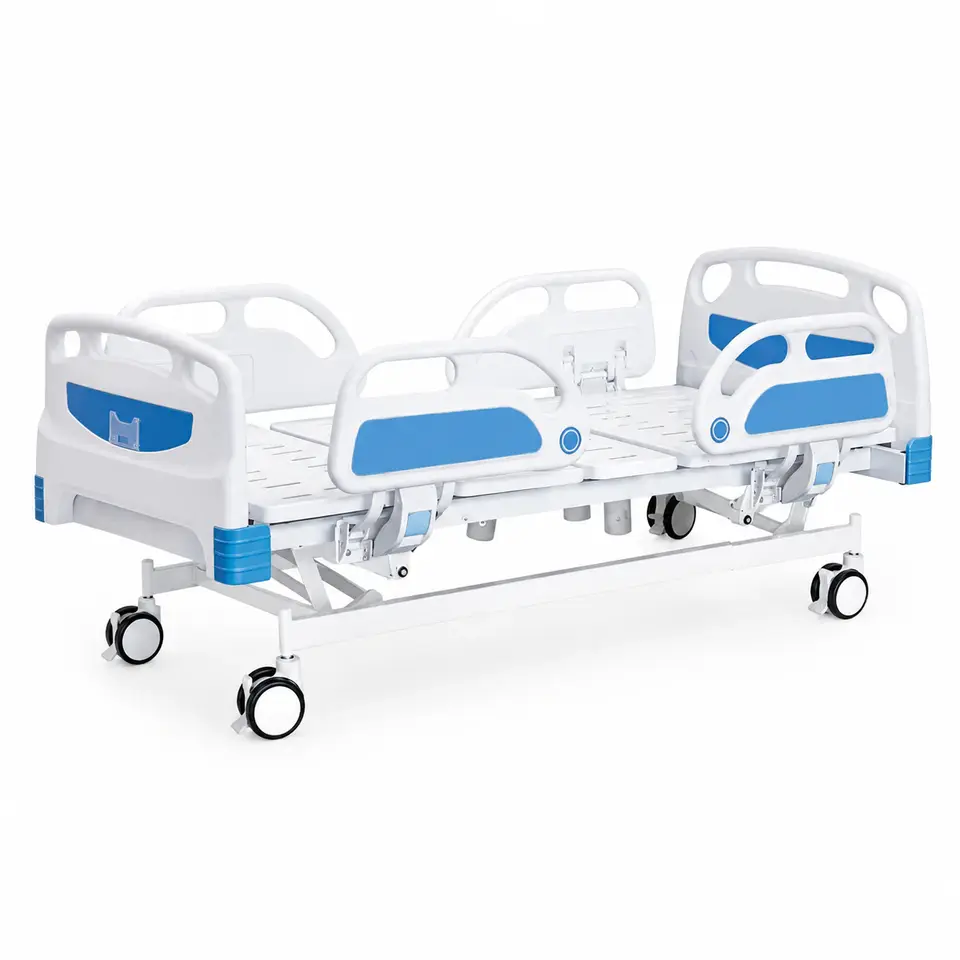

The Keling KL-BC103-A is a 5-function electric hospital bed sharing the same functional specification as the KL-BC103 — backrest to 70±10°, knee-rest to 30±10°, height 450–760 mm, Trendelenburg/reverse Trendelenburg 12±5°, 240 kg safe working load — in an alternative visual design. External dimensions are 2150 × 960 × (450–760) mm; bed surface is 1925 × 900 mm. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).
Overview

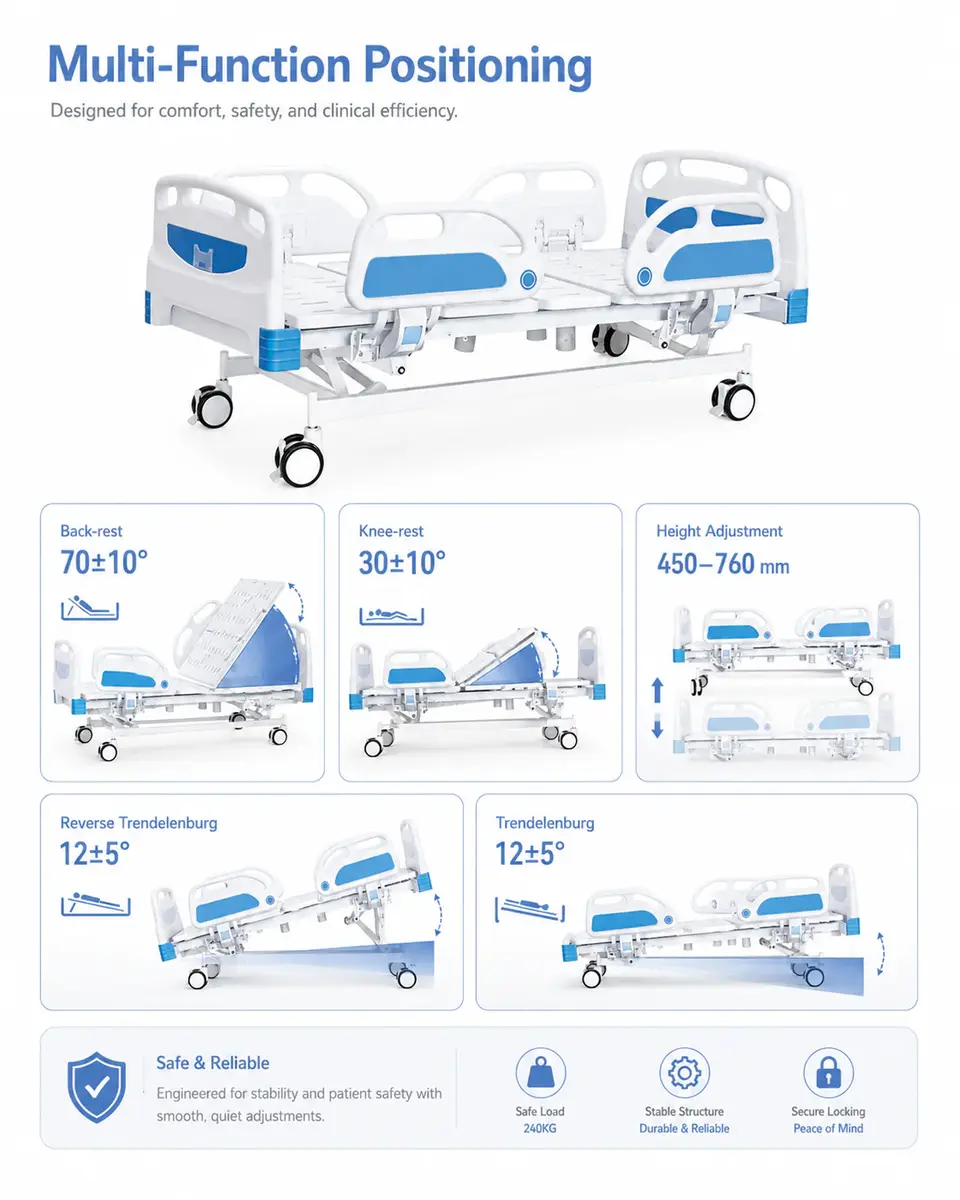

The KL-BC103-A electric hospital bed delivers the same clinical performance as the KL-BC103 in a distinct visual design style, giving hospitals and procurement teams the flexibility to select a bed that aligns with ward aesthetics or institutional branding preferences while maintaining identical technical specifications. All five electrically controlled functions — backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg — are powered independently, enabling precise patient positioning throughout inpatient care.

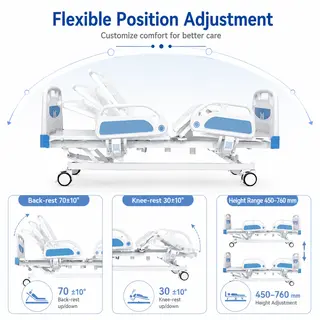

The 70±10° backrest range supports respiratory positioning, enteral feeding protocols and comfortable semi-recumbent patient rest. The independent 30±10° knee-rest limits patient sliding toward the foot of the bed — a common concern when the backrest is elevated — and reduces lumbar and sacral pressure that can contribute to pressure injury development in long-stay patients.
Height adjustment from 450 mm enables low-entry transfers that reduce fall risk, while the 760 mm upper limit brings the patient surface to a nursing-task height that reduces staff back strain. The 240 kg load rating ensures the KL-BC103-A accommodates patients across a wide body weight range without compromising structural safety.
At a glance

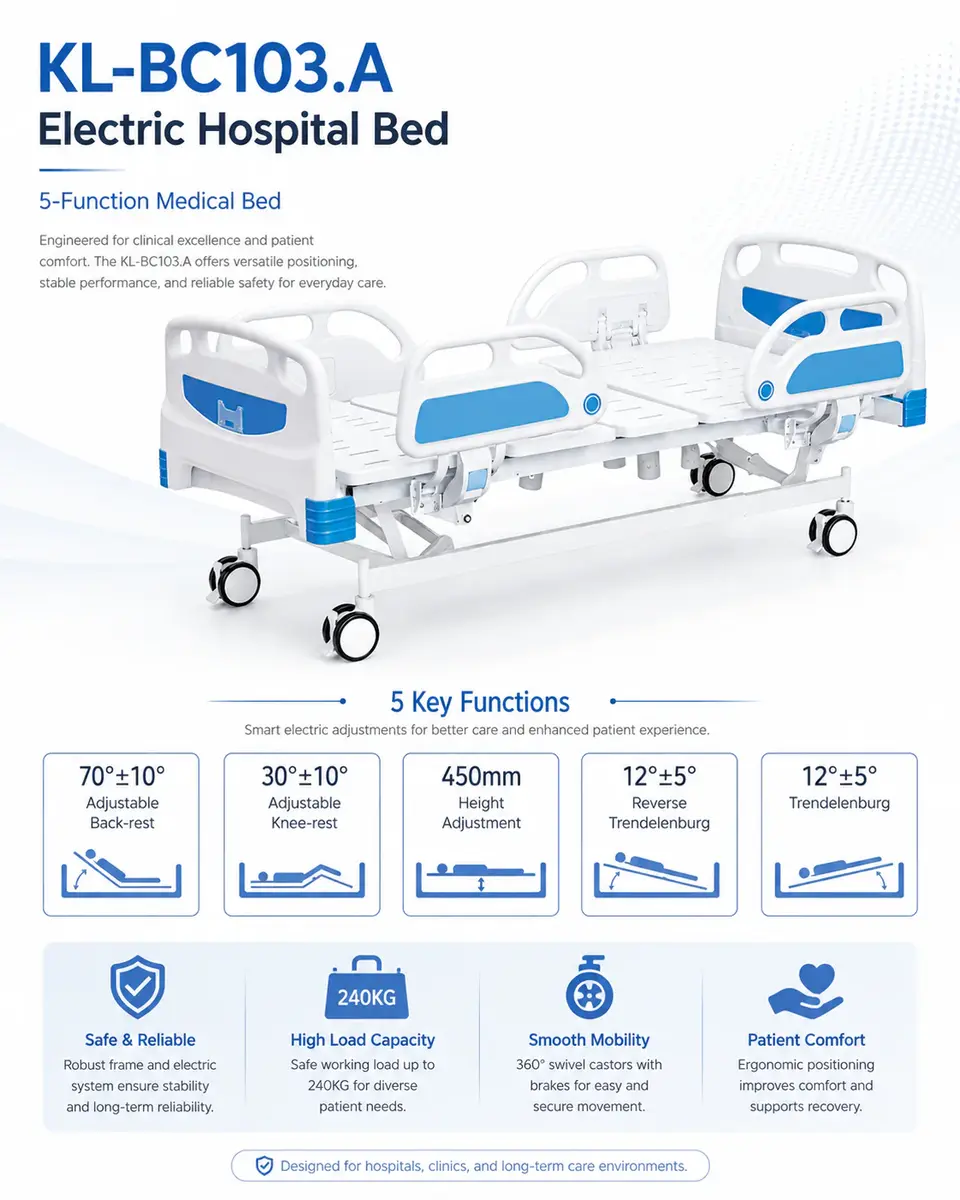

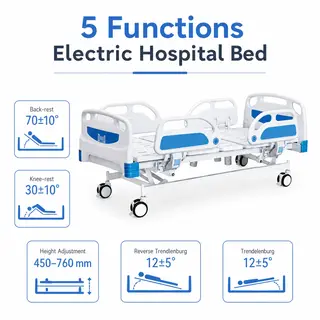

- The Keling KL-BC103-A is a 5-function electric hospital bed offering an alternative aesthetic design to the KL-BC103.
- Backrest adjusts electrically to 70±10° and knee-rest independently to 30±10°.
- Electric height adjustment spans 450–760 mm, providing a 310 mm travel range.

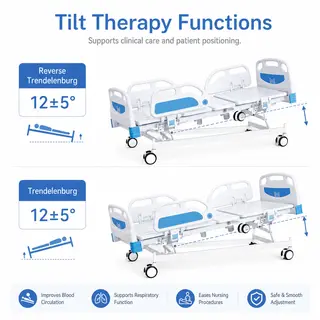

- Trendelenburg and reverse Trendelenburg each reach 12±5° for full postural tilt capability.
- Safe working load is 240 kg; bed surface size is 1925 × 900 mm.
- External dimensions are 2150 × 960 × (450–760) mm with a ±20 mm dimensional tolerance.

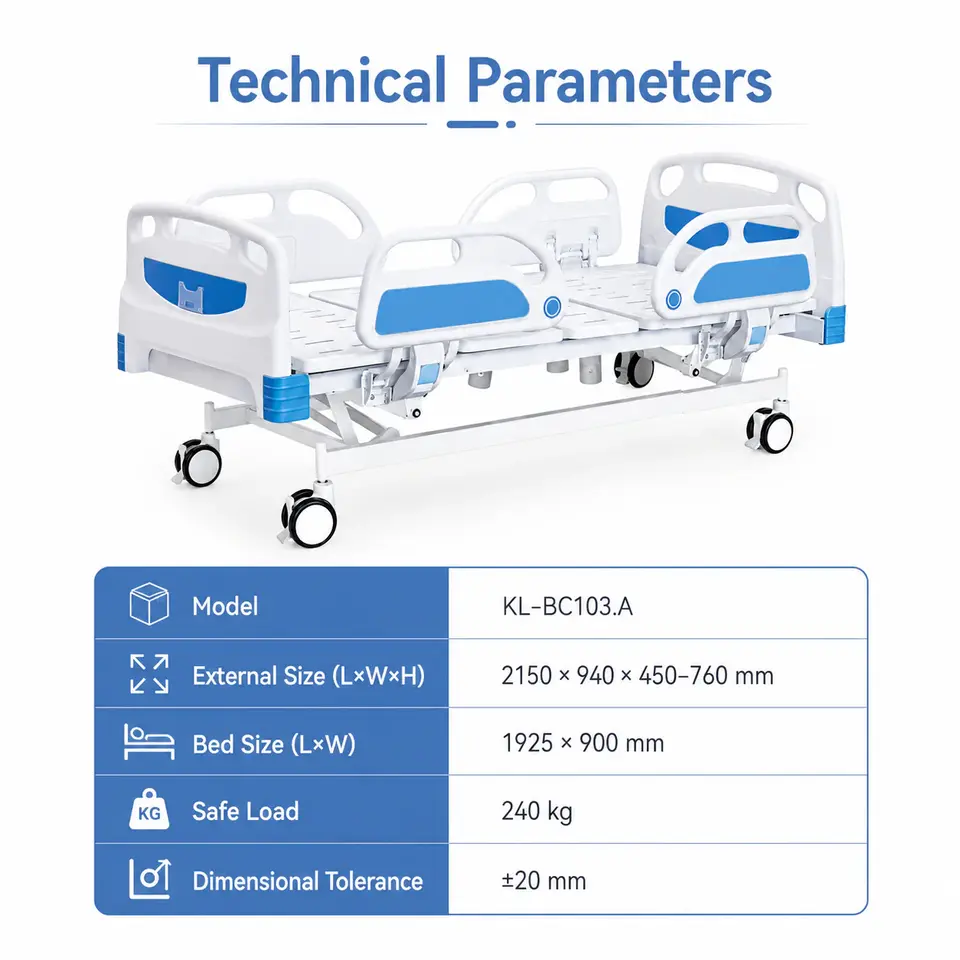

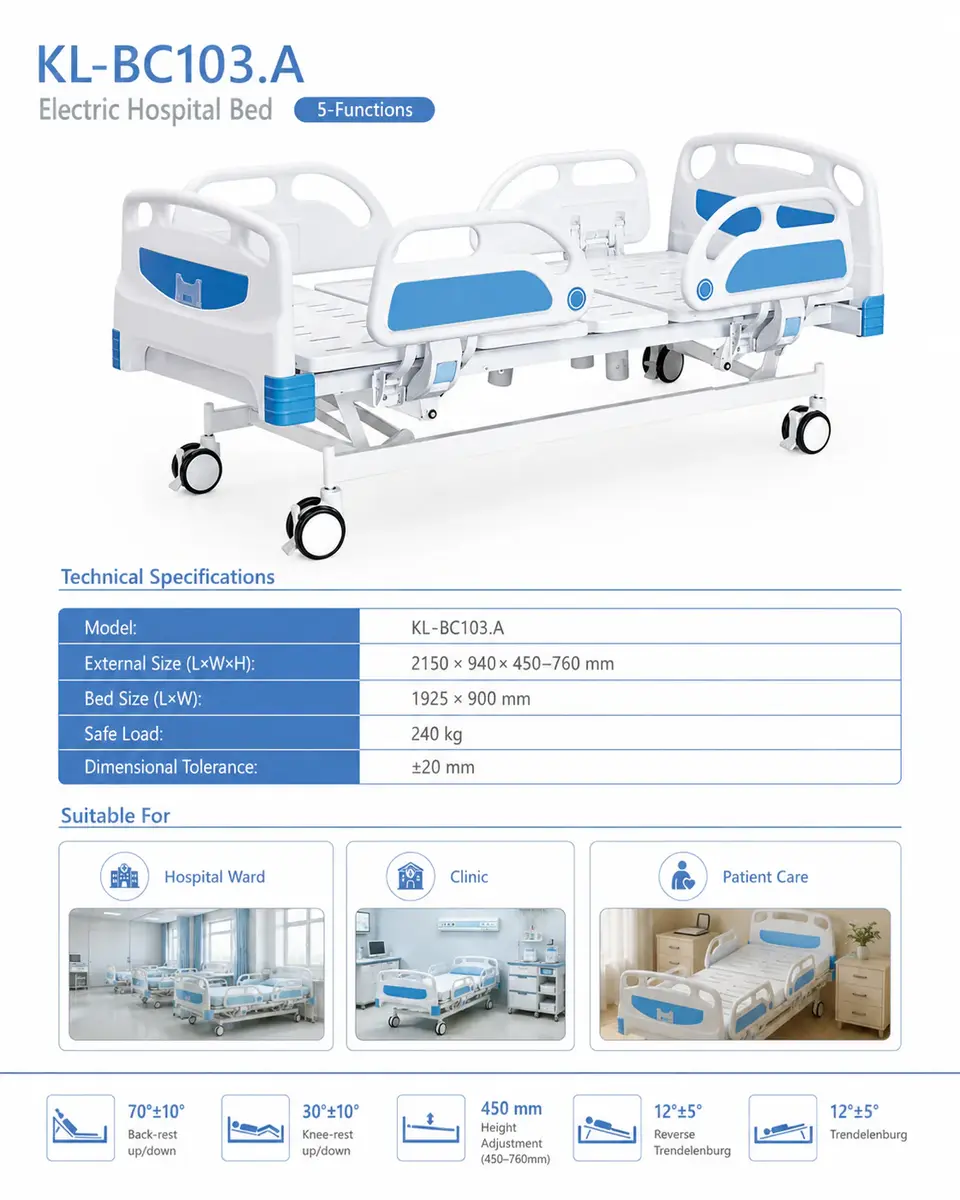

Technical specifications
| Model | KL-BC103-A |
|---|---|
| Product type | Electric hospital bed (5-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 30±10° |
| Height adjustment | 450–760 mm |
| Reverse Trendelenburg | 12±5° |
| Trendelenburg | 12±5° |
| Safe working load | 240 kg |
| External size (L × W × H) | 2150 × 960 × (450–760) mm |
| Bed surface size (L × W) | 1925 × 900 mm |
| Dimensional tolerance | ±20 mm |
Specifications are subject to continuous improvement and dimensional tolerances may apply. Ask our export team for the signed datasheet before issuing a purchase order or tender document. Specification data last reviewed ; source: Jiangsu Keling Medical Appliances Co., Ltd. engineering datasheets.

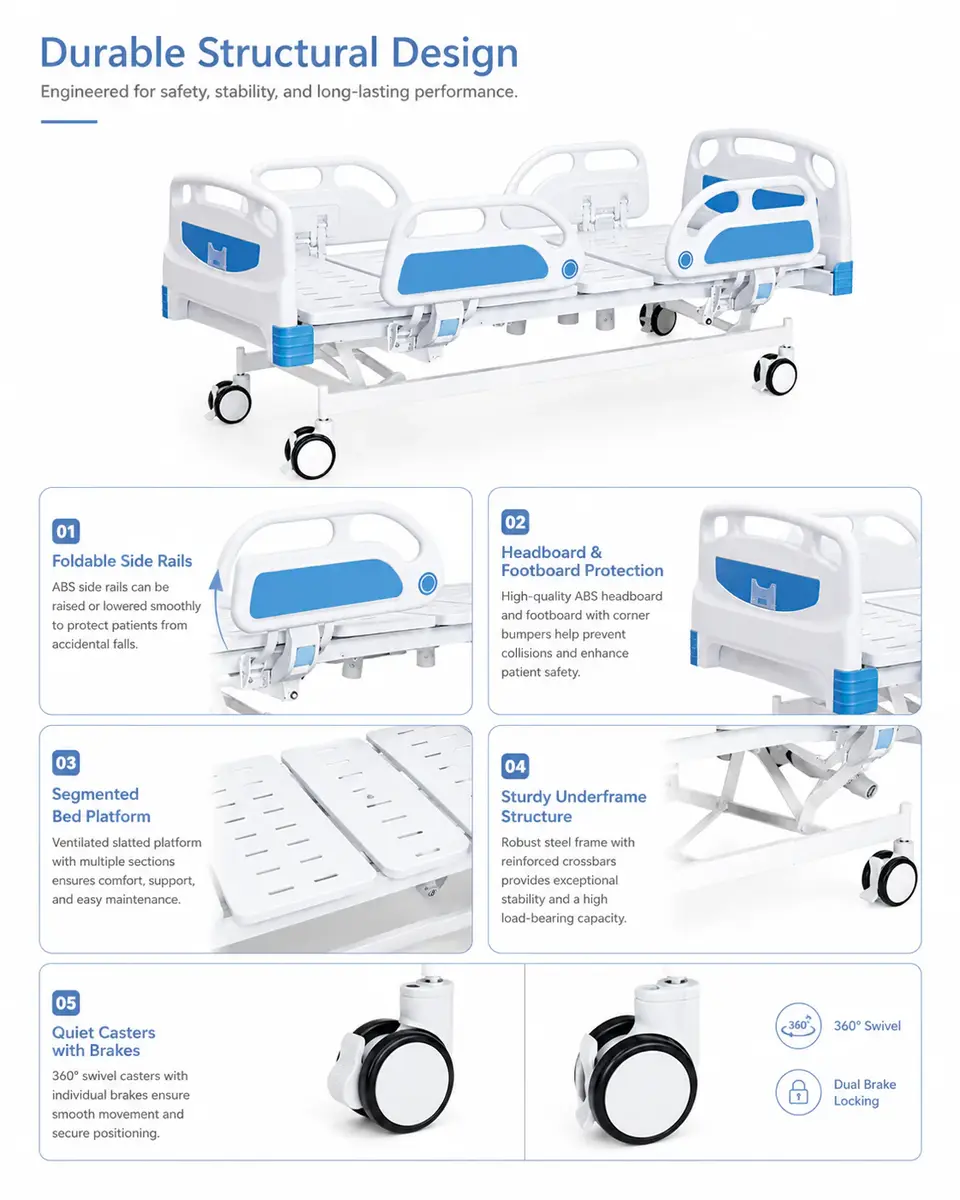

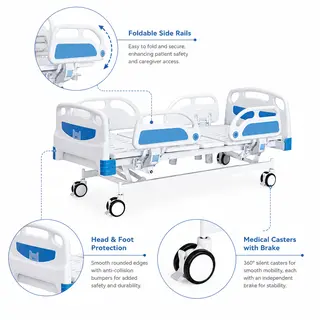

Key features
- Alternative design stylesame 5-function specification as KL-BC103 in a distinct visual design for ward aesthetic flexibility.
- 5-Function electric actuationindependent motorized control of backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg.
- Backrest to 70±10°broad electric adjustment range for respiratory care, feeding and therapeutic positions.
- Knee-rest to 30±10°independent elevation limits patient sliding and supports post-operative lower limb care.
- Height range 450–760 mmfull electric height travel for patient safety and nursing ergonomics.
- Trendelenburg / reverse Trendelenburg 12±5°bidirectional postural tilt for drainage, circulatory and surgical positioning.
- 240 kg safe working loadrated capacity for a broad inpatient population.
- Compact 960 mm external widthspace-efficient footprint for standard ward bays.
Clinical applications
The KL-BC103-A is suitable for general medical and surgical wards, post-operative recovery rooms, elderly care units and long-term inpatient facilities. Its design-style differentiation from the KL-BC103 makes it a useful choice when mixed bed procurement requires visual distinction between functional zones or ward types.
Frequently asked questions about the KL-BC103-A
What is the Keling KL-BC103-A electric hospital bed used for?
The KL-BC103-A is a 5-function electric hospital bed for general ward and inpatient clinical settings. It provides electric control of backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg tilt, supporting standard nursing care, post-operative recovery and pressure-injury prevention protocols.
How does the KL-BC103-A differ from the KL-BC103?
The KL-BC103-A and KL-BC103 share identical technical parameters — same 5-function specification, 240 kg load, 450–760 mm height range, 12±5° Trendelenburg angles and 2150 × 960 mm external dimensions. The difference is in the visual design style of the bed frame and panels, allowing facilities to select an aesthetic that suits their ward environment.
What are the bed surface and external dimensions of the KL-BC103-A?
The KL-BC103-A has a bed surface of 1925 × 900 mm and an external size of 2150 × 960 × (450–760) mm. The 960 mm external width is suited to standard ward bays while providing a 900 mm usable patient surface.
Can the KL-BC103-A be sourced in bulk for hospital projects?
Yes. Keling Medical supports wholesale, project-volume and OEM orders for hospital procurement projects through its Shanghai sales and export center. Visit https://www.keling-hospitalbed.com to contact the export team for quotations and product configuration options.
