KL-BC109
KL-BC109 Manual Hospital Bed — 5-Function Manual Bed with Trendelenburg Tilt
Keling KL-BC109 5-function manual hospital bed: 200 kg load, backrest 70°, knee-rest 30°, height 450–760 mm, Trendelenburg 12°. Full-function manual bed from an ISO 13485 factory.
- Product type
- Manual hospital bed (5-function)
- Safe working load
- 200 kg
- Backrest adjustment
- 70±10°
- Knee-rest adjustment
- 30±10°
Request pricing for KL-BC109
FOB/CIF quotation, lead time, container loading plan and OEM options — from the Shanghai export office, usually within one business day.
What is the Keling KL-BC109?

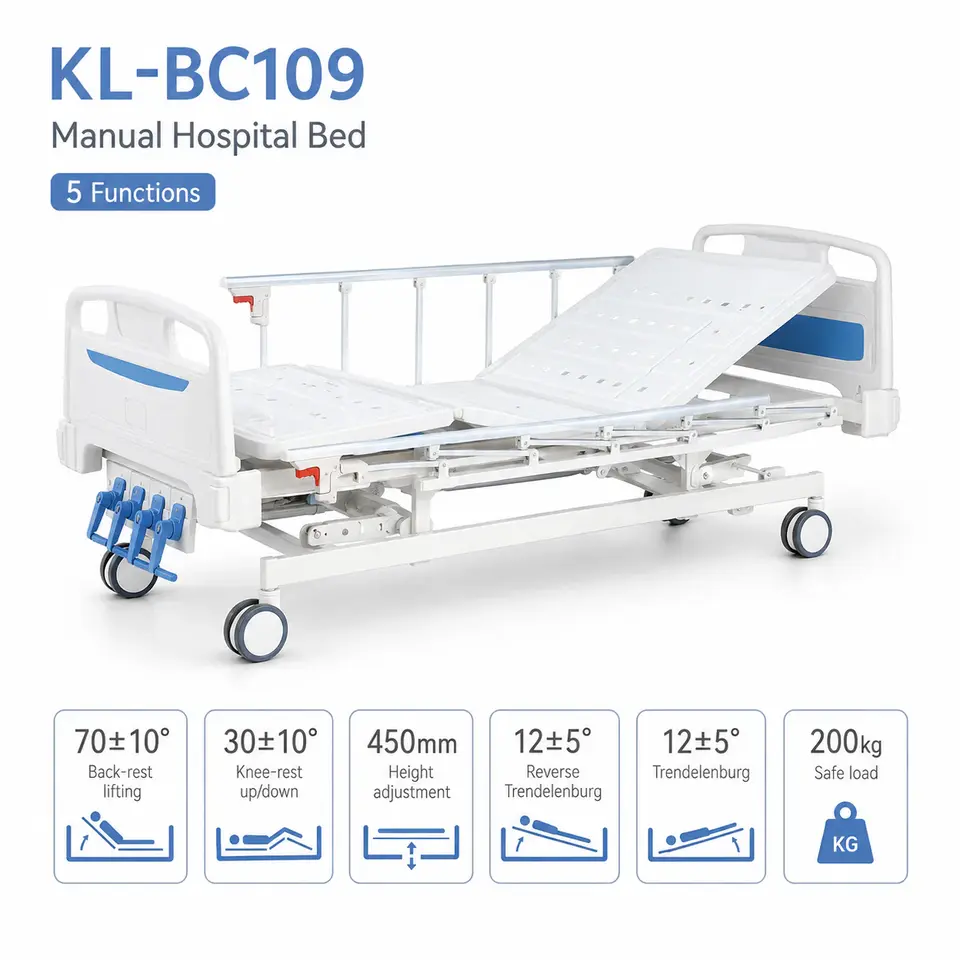

The Keling KL-BC109 is a 5-function manual hospital bed with crank-operated backrest (70±10°), knee-rest (30±10°), height adjustment (450–760 mm), Trendelenburg (12±5°) and reverse Trendelenburg (12±5°) tilt. Safe working load is 200 kg; external size is 2150 × 980 × (450–760) mm; bed surface is 1930 × 900 mm. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) — the most comprehensively adjustable manual bed in the KL-BC range.
Overview

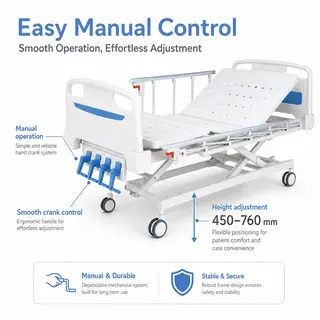

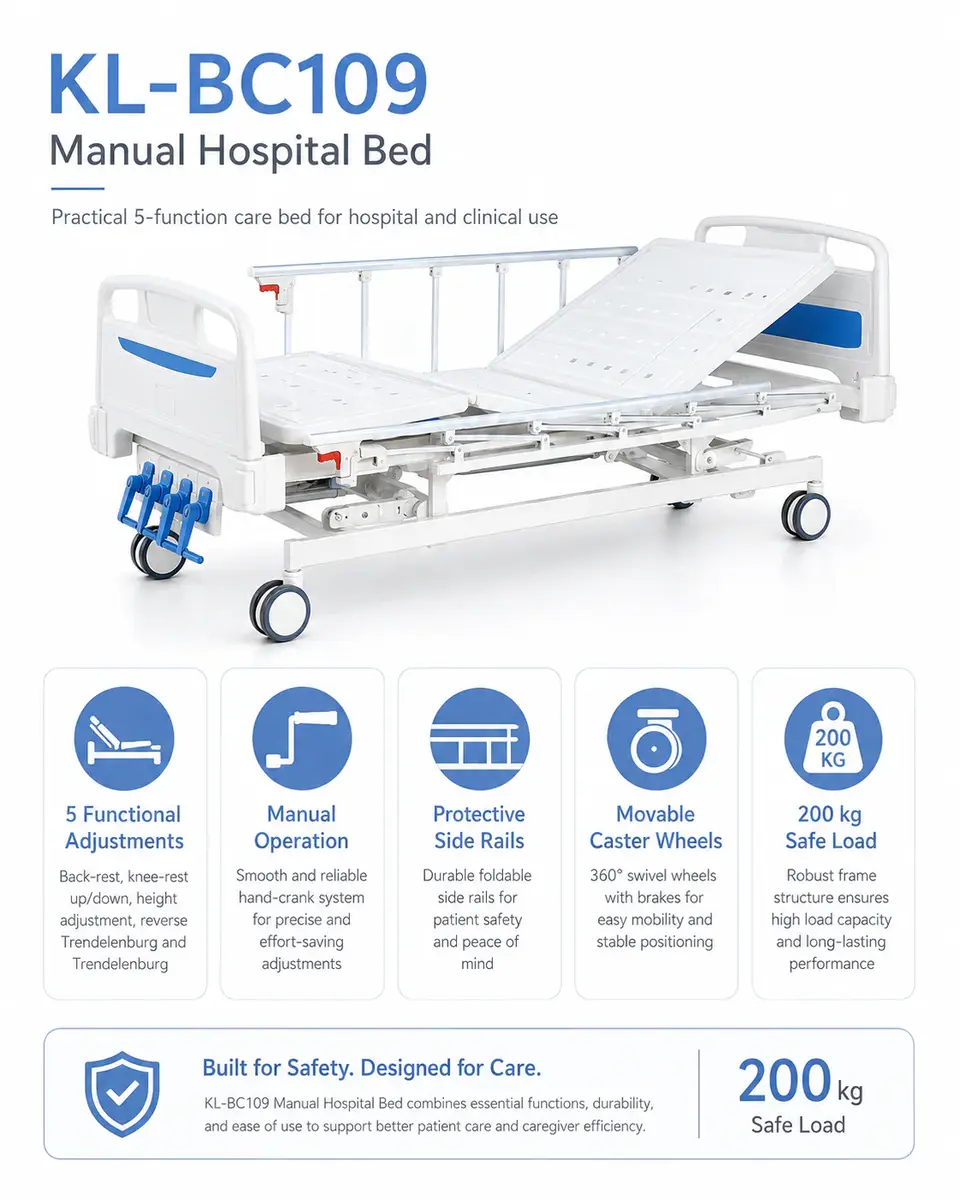

The KL-BC109 manual hospital bed delivers the complete five-adjustment clinical positioning capability found in Keling Medical's electric 5-function models, operated entirely by manual cranks — making it the most fully featured bed in the manual KL-BC series. In environments where electrical power is unreliable, where the cost or maintenance overhead of electric drives is a procurement constraint, or where manual operation is a facility policy preference, the KL-BC109 provides the same clinical positioning range as its electric counterparts.

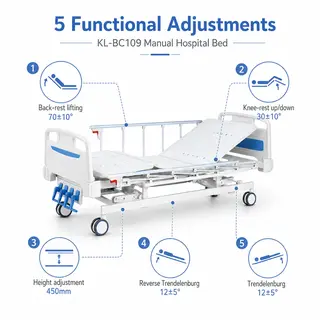

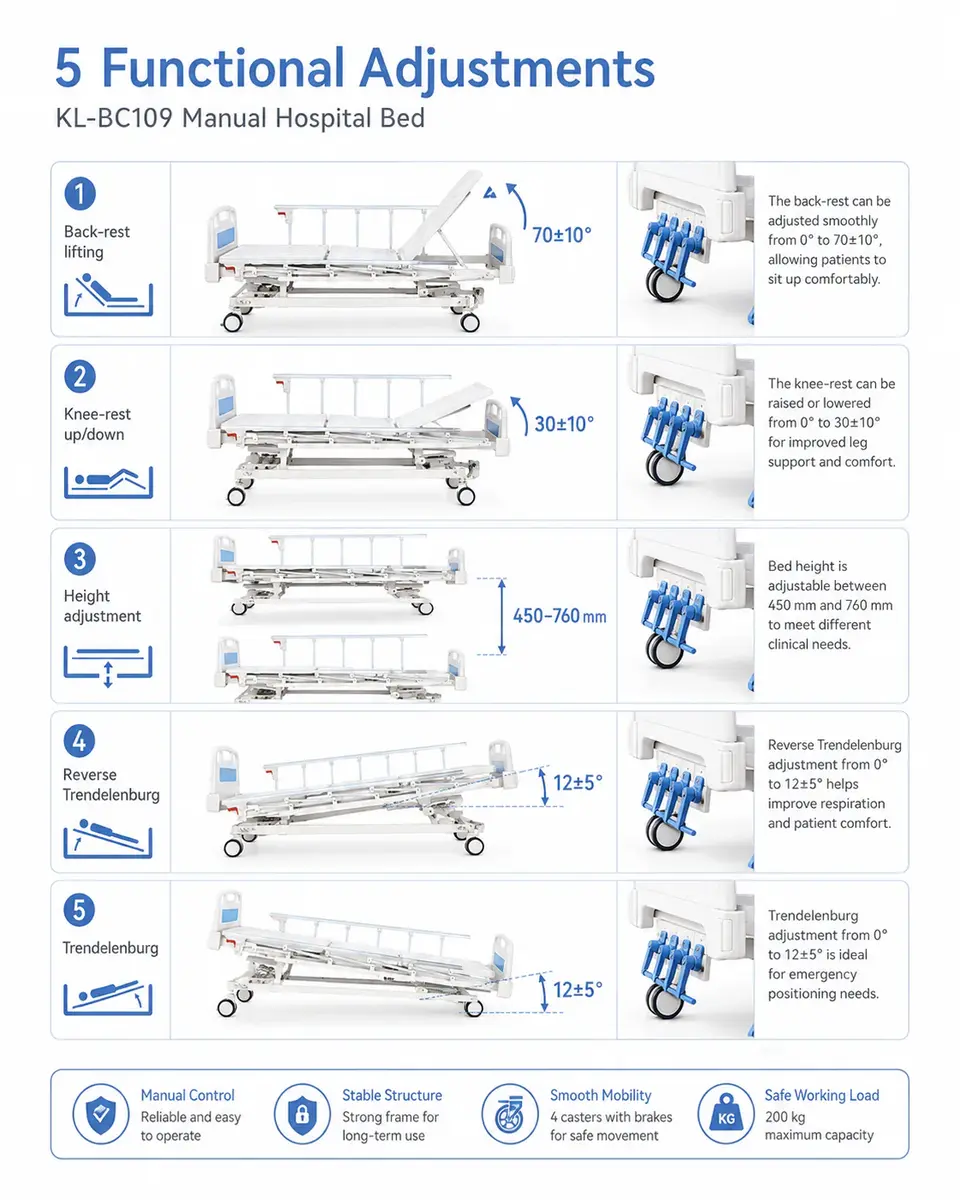

All five adjustments — backrest, knee-rest, bed height, Trendelenburg and reverse Trendelenburg — operate independently, giving clinical staff the ability to combine positions for complex patient care scenarios. Trendelenburg tilt (feet elevated) at 12±5° supports shock management and postural drainage without electric power. Reverse Trendelenburg (head elevated) at the same 12±5° range supports acid reflux management, intracranial pressure positioning and thoracic drainage workflows.
The 450–760 mm height adjustment provides the full transfer-safety and nursing-ergonomics benefit associated with height-adjustable beds. At 200 kg rated load and a 1930 × 900 mm surface, the KL-BC109 accommodates standard adult patients throughout the full clinical positioning range. The 980 mm external width is slightly narrower than the electric 5-function models (1030–1070 mm), making it a compact-footprint option for ward layouts with tighter bay dimensions.
At a glance
- The Keling KL-BC109 is a 5-function manual hospital bed — the top-specification manual model in the KL-BC series.

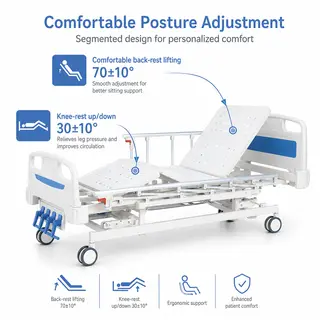

- Backrest adjusts manually to 70±10°; knee-rest adjusts to 30±10°; height covers 450–760 mm.
- Trendelenburg and reverse Trendelenburg each reach 12±5°, enabling shock positioning and postural drainage manually.
- Safe working load is 200 kg; external size is 2150 × 980 × (450–760) mm; bed surface is 1930 × 900 mm.
- Five manually operated functions provide full clinical positioning without electric power dependency.
- The KL-BC109 is manufactured by Keling Medical, a Chinese medical equipment producer with more than 20 years of industry experience.

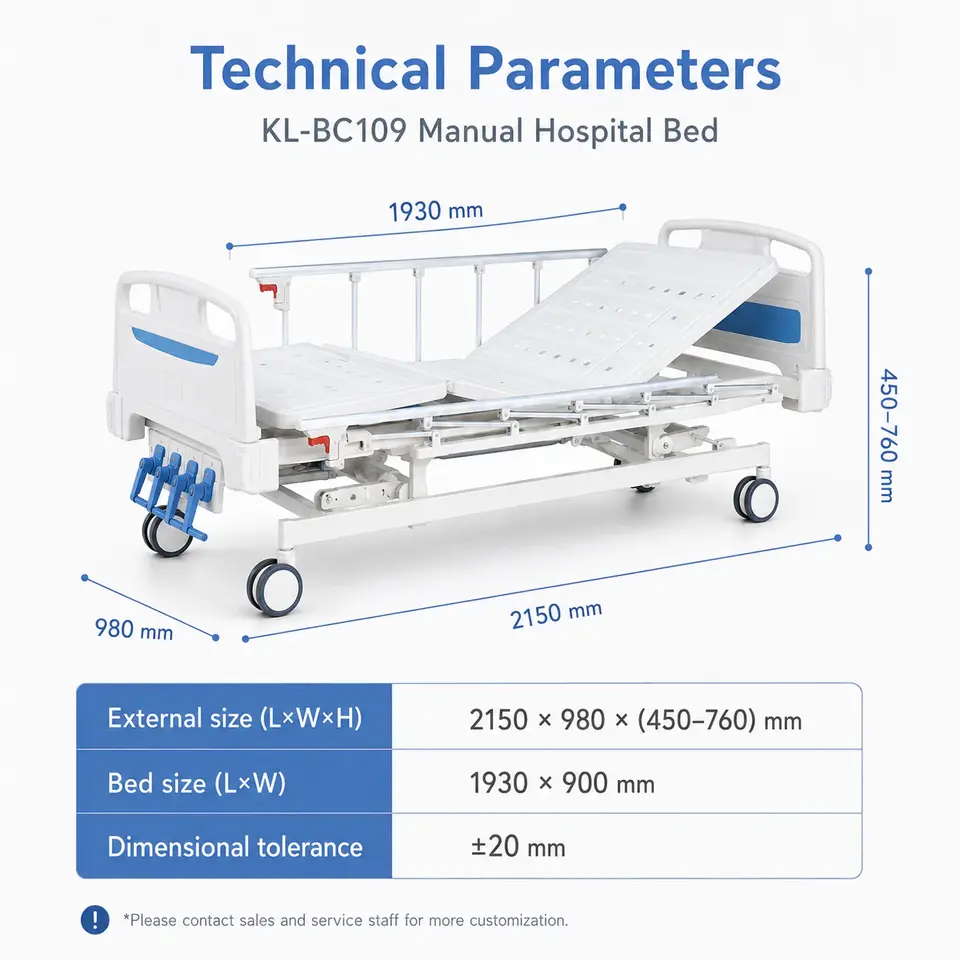

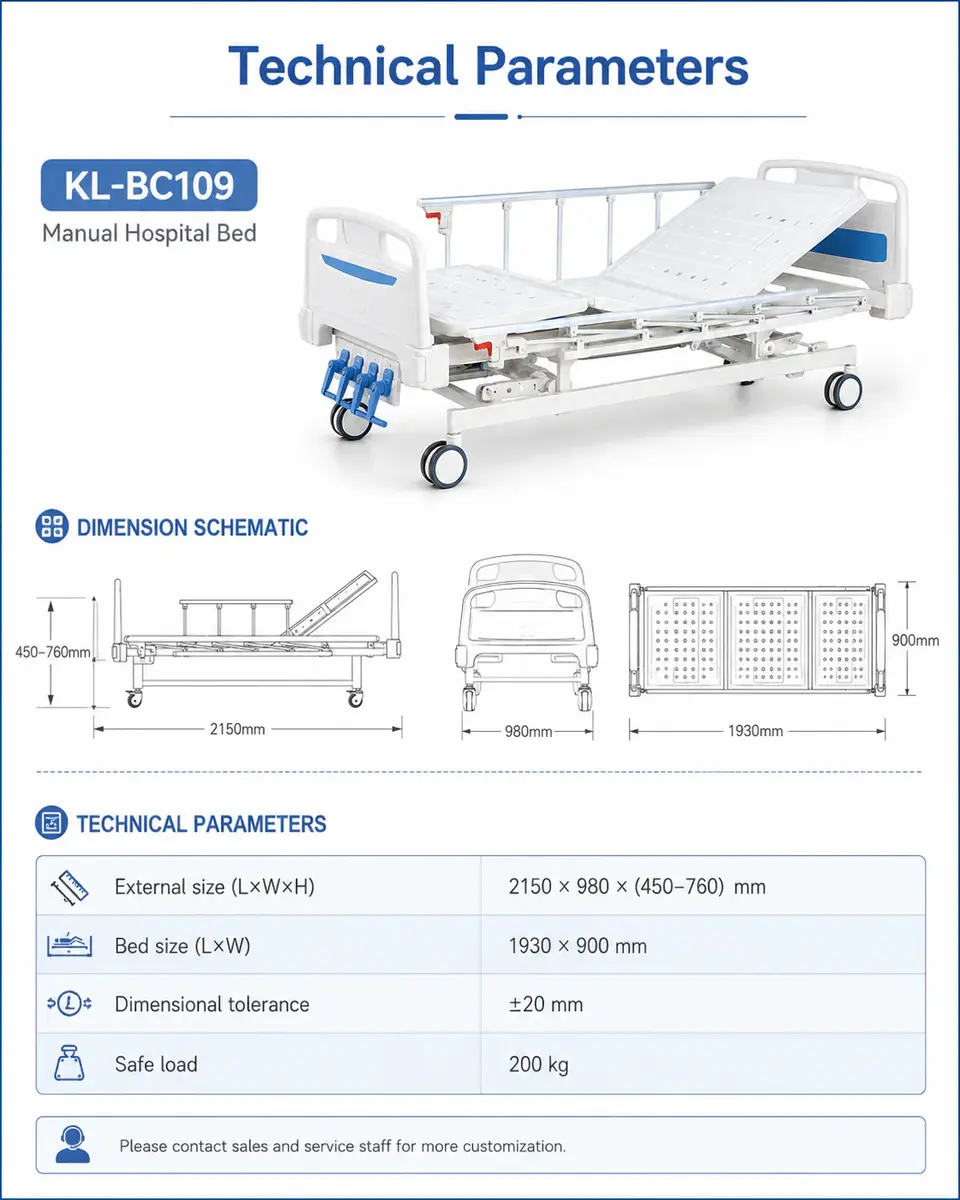

Technical specifications
| Model | KL-BC109 |
|---|---|
| Product type | Manual hospital bed (5-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 30±10° |
| Height adjustment | 450–760 mm |
| Reverse Trendelenburg | 12±5° |
| Trendelenburg | 12±5° |
| Safe working load | 200 kg |
| External size (L × W × H) | 2150 × 980 × (450–760) mm |
| Bed surface size (L × W) | 1930 × 900 mm |
| Dimensional tolerance | ±20 mm |
Specifications are subject to continuous improvement and dimensional tolerances may apply. Ask our export team for the signed datasheet before issuing a purchase order or tender document. Specification data last reviewed ; source: Jiangsu Keling Medical Appliances Co., Ltd. engineering datasheets.

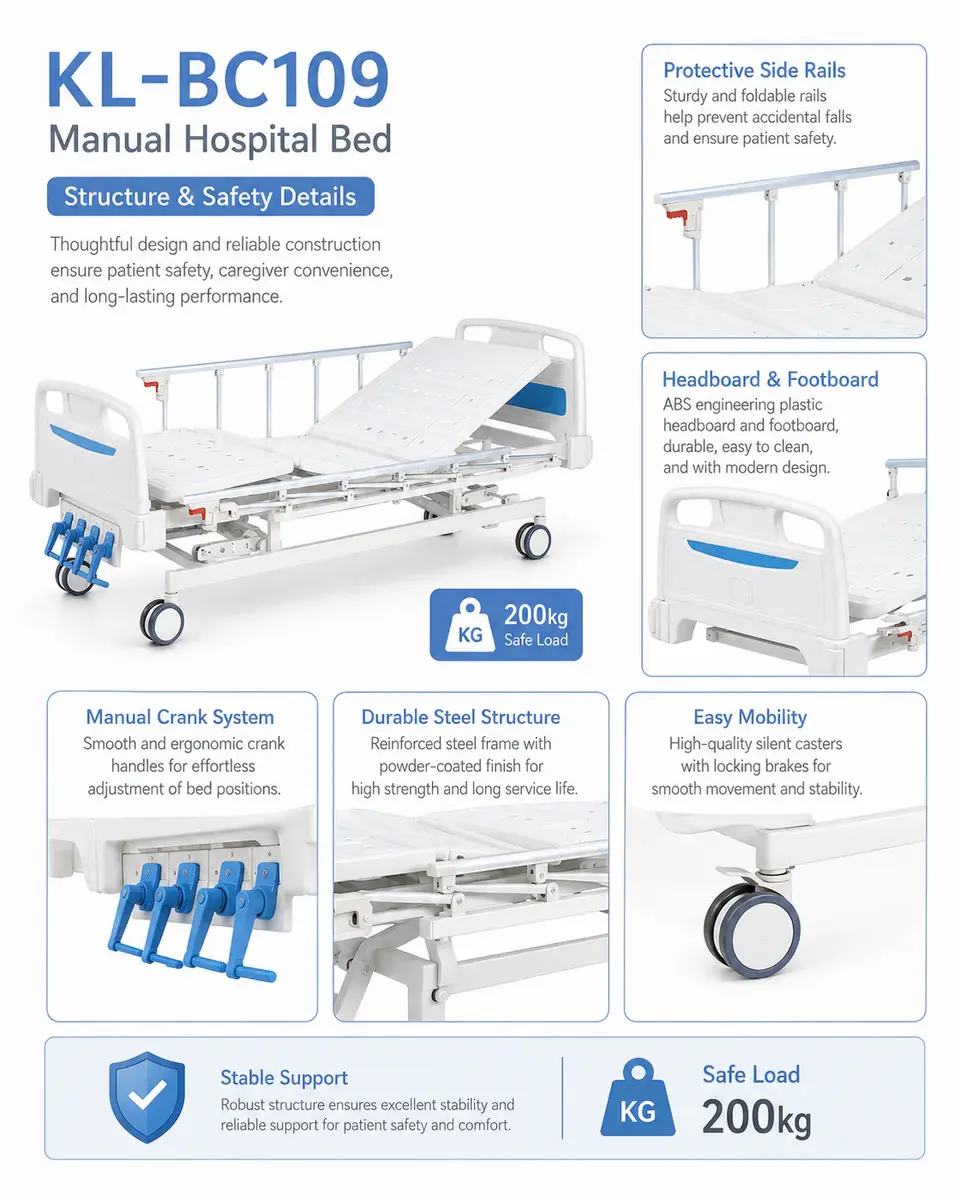

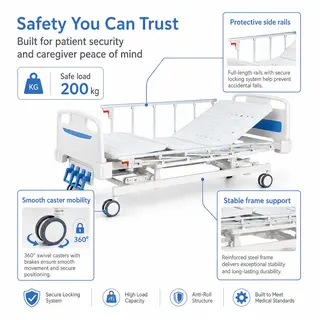

Key features
- 5-Function manual adjustmentfive independent crank-operated adjustments covering all standard clinical positions.
- Backrest to 70±10°full manual adjustment from flat to near-upright.
- Knee-rest to 30±10°independent elevation reduces sliding and lumbar-sacral pressure.
- Height adjustment 450–760 mm310 mm manual travel for transfer safety and nursing ergonomics.
- Trendelenburg 12±5°manual tilt for shock positioning and postural drainage.
- Reverse Trendelenburg 12±5°manual head-up tilt for respiratory, reflux and neurological positioning.
- 200 kg safe working loadrated for standard adult inpatient populations.
- Compact 980 mm external widthspace-efficient footprint for standard ward bays.
- No electric dependencysuitable for facilities with limited electrical infrastructure.
Clinical applications
The KL-BC109 is suited to general medical and surgical wards, ICU step-down units, post-operative recovery, rehabilitation wards and community hospitals where full 5-function positioning capability is required but electric drive systems are not preferred. It is particularly appropriate for facilities in markets where power supply reliability is a factor in equipment selection.
Frequently asked questions about the KL-BC109
What is the Keling KL-BC109 manual hospital bed used for?
The KL-BC109 is a 5-function manual hospital bed providing crank-operated control of backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg. It delivers the full clinical positioning range needed for general ward and post-acute care, including shock positioning and postural drainage, without electric power.
How does the KL-BC109 compare to the electric KL-BC103?
The KL-BC109 and KL-BC103 share the same 5-function specification — backrest to 70±10°, knee-rest to 30±10°, height 450–760 mm and 12±5° Trendelenburg angles. The KL-BC103 uses electric motors for all adjustments; the KL-BC109 uses manual cranks. The KL-BC109's load rating is 200 kg vs. 240 kg for the KL-BC103, and its external width (980 mm) is slightly narrower than the KL-BC103 (960 mm).
What Trendelenburg angles does the KL-BC109 provide?
The KL-BC109 provides manual Trendelenburg tilt of 12±5° (feet-up) and reverse Trendelenburg tilt of 12±5° (head-up). These tilts are operated by manual cranks and function independently of the height, backrest and knee-rest adjustments.
Is the KL-BC109 available for export and bulk purchase?
Yes. Keling Medical exports hospital beds to hospitals, health systems and distributors worldwide and supports bulk, project and OEM orders through its Shanghai export center. Submit inquiries at https://www.keling-hospitalbed.com for pricing, datasheet and customization information.
