KL-BC111 Manual Orthopedics Traction Bed — 5-Function Orthopaedic Bed with Overhead Traction Frame
Keling KL-BC111 5-function manual orthopedics traction bed: 200 kg load, backrest 70°, height 460–720 mm, Trendelenburg 12°, overhead traction frame. ISO 13485 manufacturer.
- Product type
- Manual orthopedics traction bed (5-function)
- Safe working load
- 200 kg
- Backrest adjustment
- 70±10°
- Knee-rest adjustment
- 30±10°
Request pricing for KL-BC111
FOB/CIF quotation, lead time, container loading plan and OEM options — from the Shanghai export office, usually within one business day.
What is the Keling KL-BC111?
The Keling KL-BC111 is a 5-function manual orthopedics traction bed with an integrated overhead traction frame, backrest adjustment to 70±10°, knee-rest to 30±10°, height range 460–720 mm, Trendelenburg and reverse Trendelenburg of 12±5°, and a 200 kg safe working load. External dimensions are 2160 × 1060 × (460–720) mm; bed surface is 1925 × 900 mm. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for orthopaedic wards and trauma units.
Overview

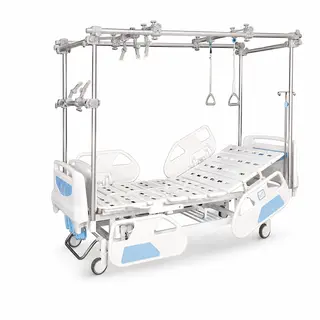

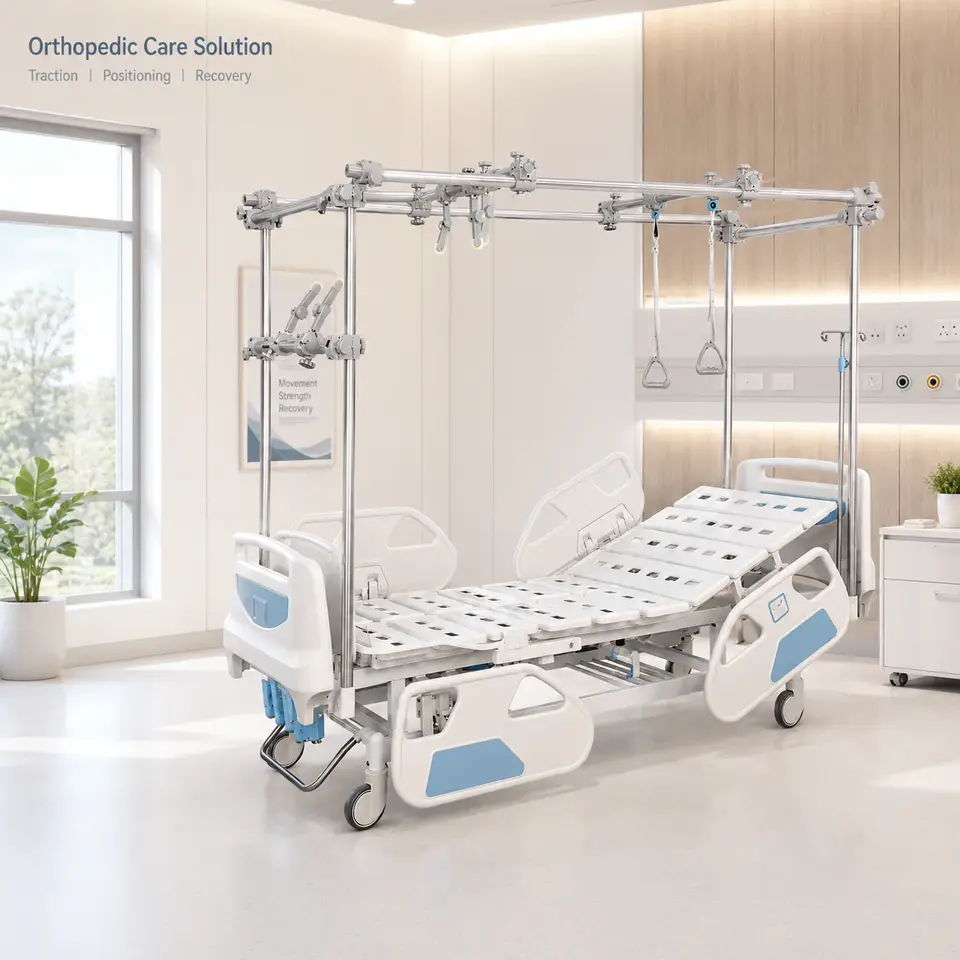

The KL-BC111 manual orthopedics traction bed is a specialist inpatient bed designed for the care of orthopaedic and trauma patients who require traction, balanced suspension or upper limb trapeze support as part of their clinical management. The integrated overhead traction frame — visible as a structural steel gantry above the bed — provides multiple attachment points for skeletal traction weights, slings, pulleys and a patient trapeze bar, enabling the nursing and physiotherapy team to maintain traction devices without a separate freestanding frame.

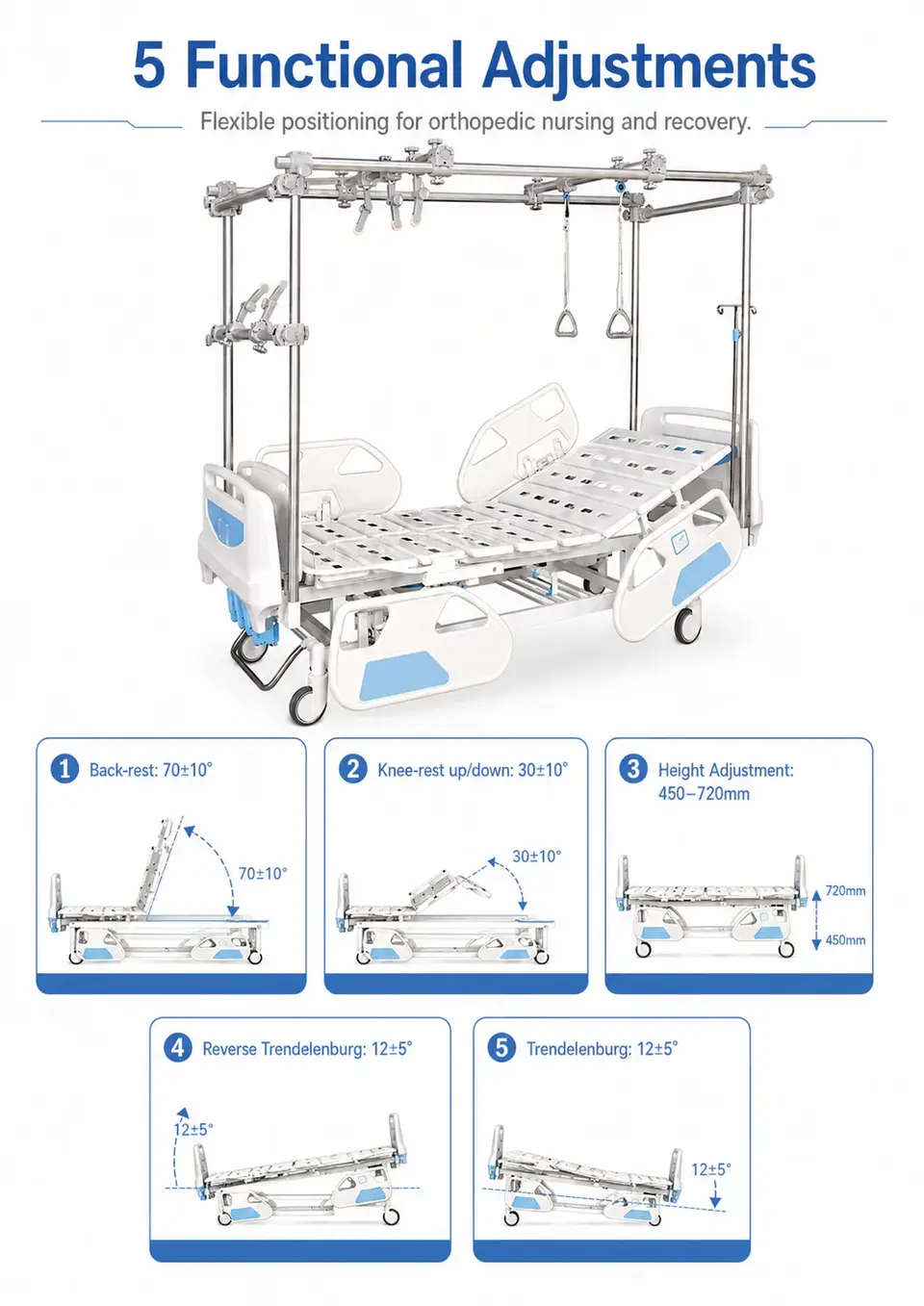

The five-function manual platform — backrest, knee-rest, height adjustment, Trendelenburg and reverse Trendelenburg — gives clinicians the positioning flexibility needed in orthopaedic post-operative and fracture management contexts. The 460–720 mm height range, while slightly higher in its lower bound than standard ward beds (450 mm), is appropriate for the orthopaedic care context where traction equipment clearance at the foot and sides of the bed is required. Trendelenburg tilt at 12±5° is compatible with anti-shock positioning and lower-limb vascular support protocols.
The 200 kg load rating and 1925 × 900 mm surface accommodate the full range of adult orthopaedic patients, including those with casts, external fixators and splints. The 1060 mm external width — the widest in the KL-BC manual series — reflects the additional clearance needed for traction attachments, side-mounted accessories and external fixation equipment alongside the patient.
At a glance

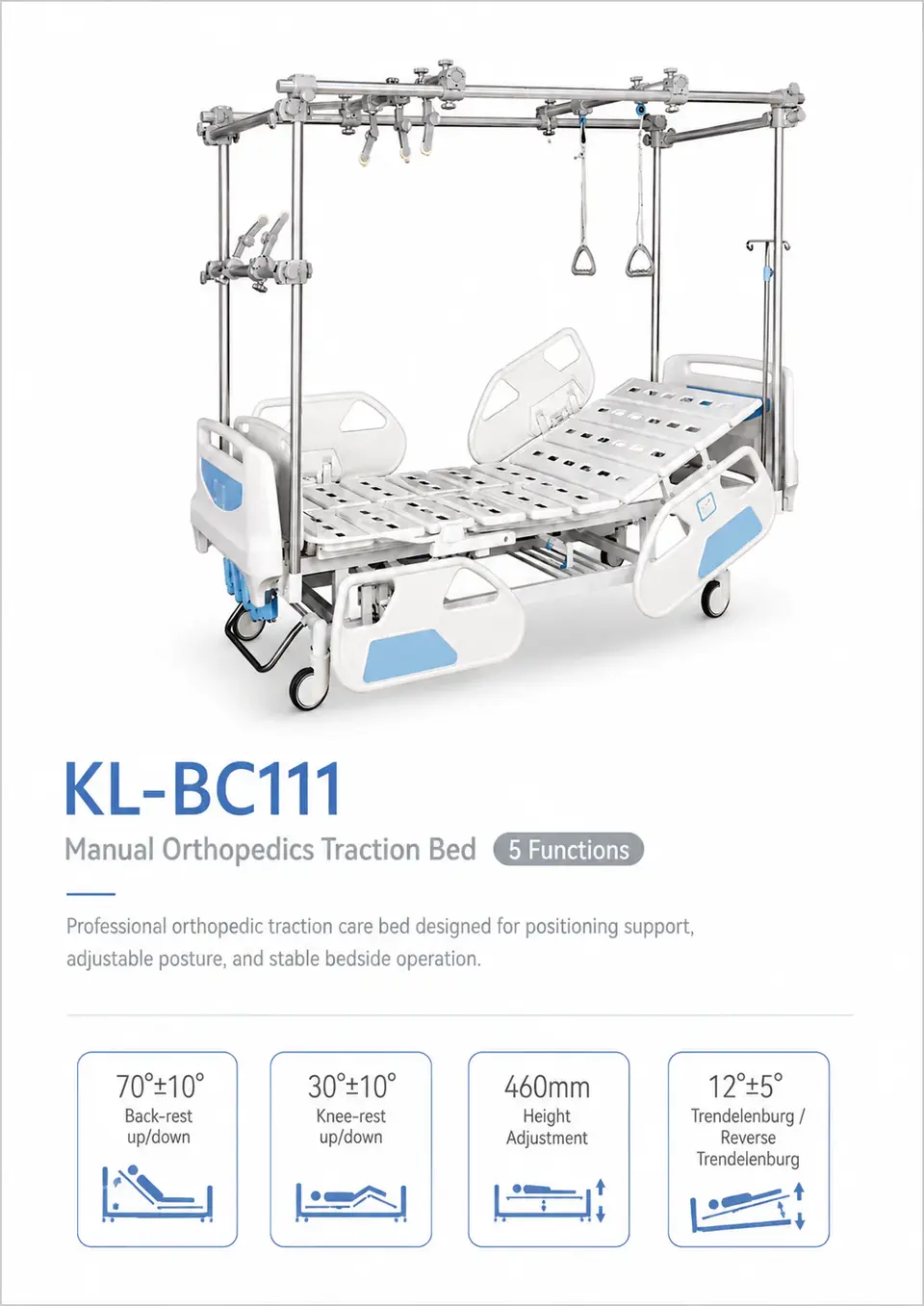

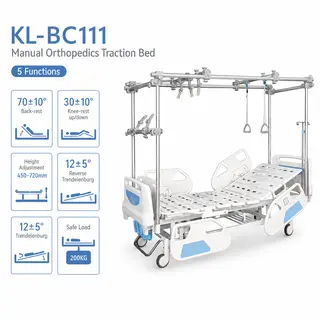

- The Keling KL-BC111 is a 5-function manual orthopedics traction bed with an integrated overhead traction frame.
- Backrest adjusts manually to 70±10° and knee-rest to 30±10° for orthopaedic positioning and mobilization.
- Height adjustment spans 460–720 mm; Trendelenburg and reverse Trendelenburg each reach 12±5°.
- The overhead traction frame provides attachment points for balanced suspension, skeletal traction and trapeze bar.
- Safe working load is 200 kg; external size is 2160 × 1060 × (460–720) mm; bed surface is 1925 × 900 mm.
- The KL-BC111 is manufactured by Keling Medical, a Chinese medical equipment producer with more than 20 years of industry experience.

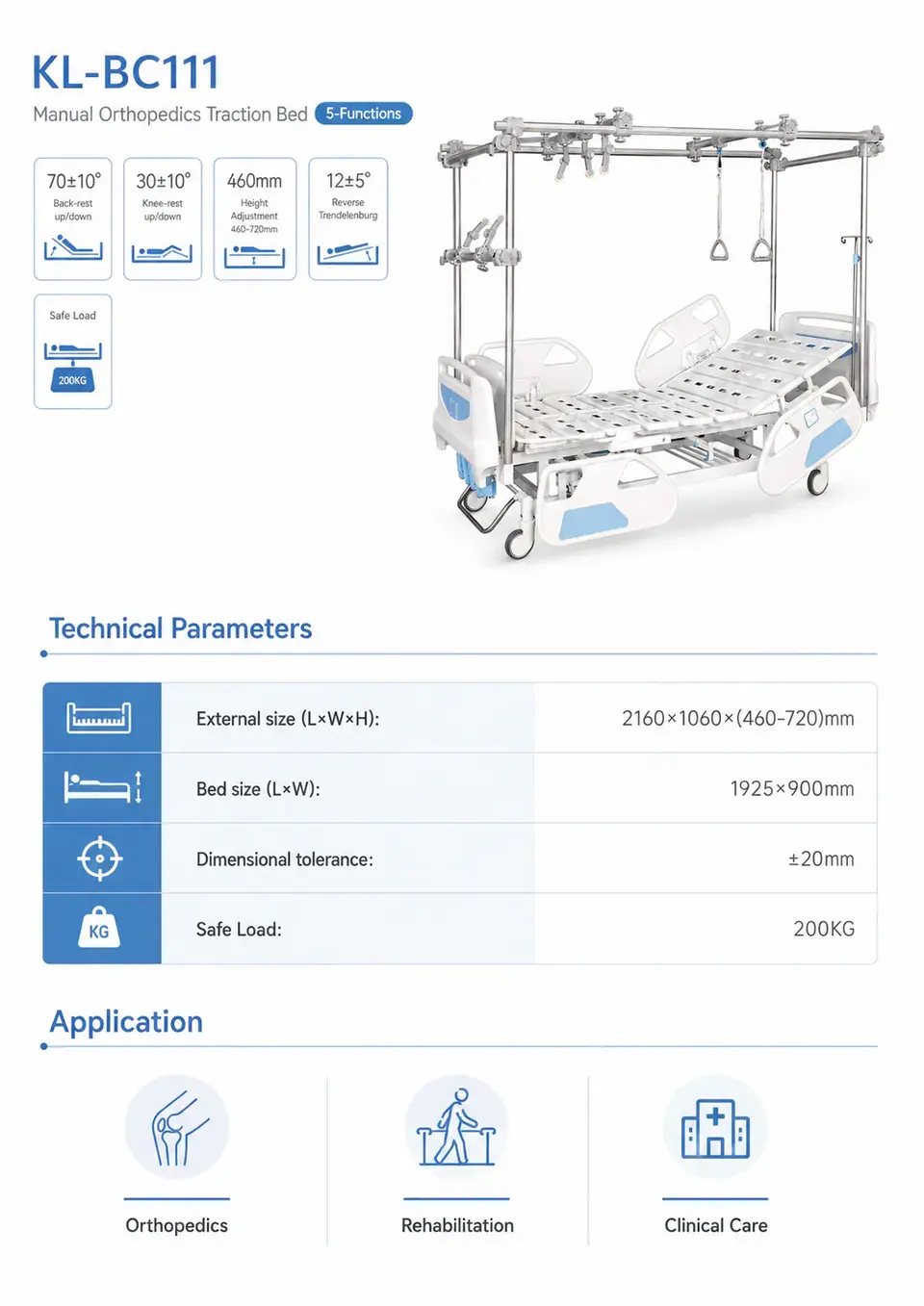

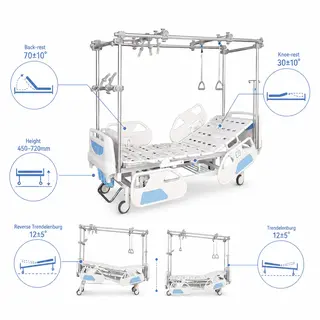

Technical specifications
| Model | KL-BC111 |
|---|---|
| Product type | Manual orthopedics traction bed (5-function) |
| Backrest adjustment | 70±10° |
| Knee-rest adjustment | 30±10° |
| Height adjustment | 460–720 mm |
| Reverse Trendelenburg | 12±5° |
| Trendelenburg | 12±5° |
| Safe working load | 200 kg |

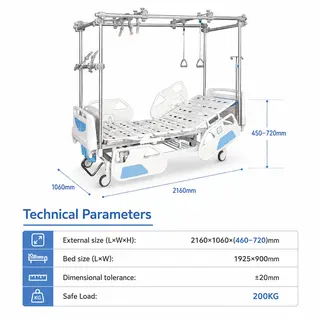

| External size (L × W × H) | 2160 × 1060 × (460–720) mm |
| Bed surface size (L × W) | 1925 × 900 mm |
| Dimensional tolerance | ±20 mm |
| Traction frame | Integrated overhead steel frame |
Specifications are subject to continuous improvement and dimensional tolerances may apply. Ask our export team for the signed datasheet before issuing a purchase order or tender document. Specification data last reviewed ; source: Jiangsu Keling Medical Appliances Co., Ltd. engineering datasheets.
Key features

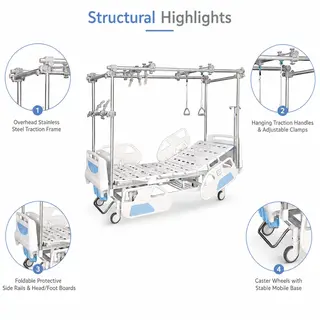

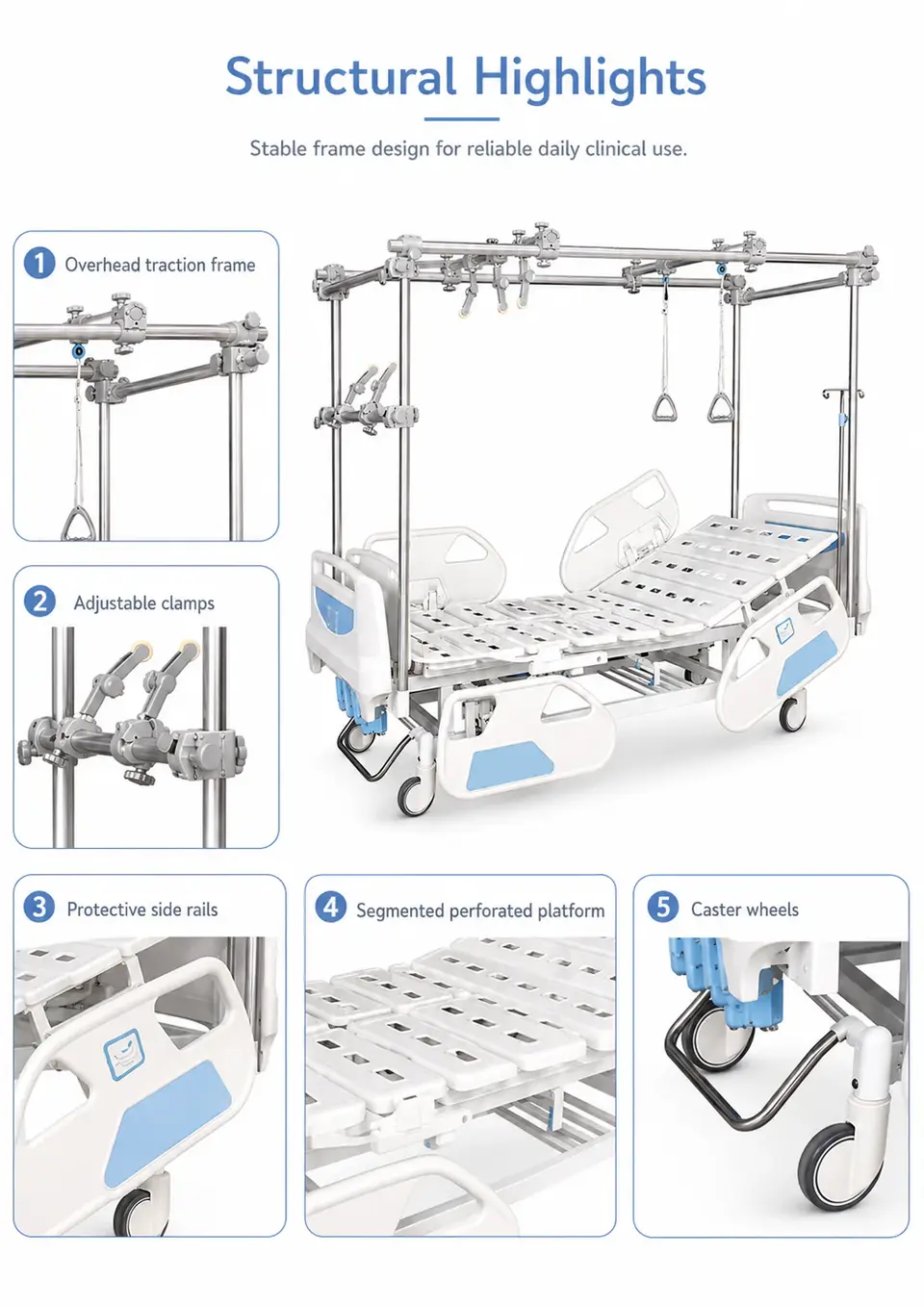

- Integrated overhead traction framestructural steel gantry above the bed for balanced suspension, skeletal traction, slings, pulleys and trapeze bar attachment.
- 5-Function manual adjustmentindependent crank-operated backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg.
- Backrest to 70±10°manual adjustment for orthopaedic positioning, progressive mobilization and respiratory care.
- Knee-rest to 30±10°independent elevation for lower-limb positioning and post-operative support.
- Height range 460–720 mm260 mm manual travel with clearance for traction equipment.
- Trendelenburg / reverse Trendelenburg 12±5°postural tilt for anti-shock, vascular and drainage positioning.
- 200 kg safe working loadrated capacity for orthopaedic patients with implants, casts or external fixation.
- Wide 1060 mm external widthextra lateral clearance for traction attachments and side accessories.
Clinical applications
The KL-BC111 is designed for orthopaedic inpatient wards, trauma units, fracture management bays and post-surgical orthopaedic recovery rooms. Its integrated traction frame makes it suitable for the management of femoral, tibial and upper-limb fractures requiring skeletal traction or balanced suspension, and for spinal and pelvic trauma patients requiring supported positioning.
Frequently asked questions about the KL-BC111
What is the Keling KL-BC111 orthopedics traction bed used for?
The KL-BC111 is a 5-function manual orthopedics traction bed for orthopaedic and trauma inpatient care. Its integrated overhead traction frame supports skeletal traction, balanced suspension and trapeze bar for patients with fractures or post-operative orthopaedic conditions, combined with full 5-function manual positioning control.
What attachments does the overhead traction frame of the KL-BC111 support?
The KL-BC111's overhead frame is designed for balanced suspension setups, skeletal traction weights and pulleys, sling support and a patient trapeze bar for self-repositioning assistance. Specific attachment fittings and accessories are available — contact Keling Medical for detailed accessory information.
How does the KL-BC111 height range compare to standard manual beds?
The KL-BC111 adjusts from 460 to 720 mm — a 260 mm travel range. The 460 mm lower limit is slightly higher than the 450 mm of models like the KL-BC108 and KL-BC109, which is appropriate for orthopaedic settings where traction equipment clearance and frame attachment geometry require a slightly elevated minimum height.
Can the KL-BC111 be supplied in bulk for orthopaedic wards?
Yes. Keling Medical supplies specialist orthopaedic beds and standard ward beds to hospitals and distributors worldwide, with bulk, project and OEM ordering available through its Shanghai export center. Contact Keling Medical via https://www.keling-hospitalbed.com for orthopaedic ward procurement quotes and specifications.
