KL-BC110
KL-BC110 Electric Gynecological Birth Bed — 5-Function OB Delivery Bed with Leg Supports
Keling KL-BC110 electric gynecological birth bed: 240 kg load, backrest 70°, height 680–900 mm, Trendelenburg 17°, leg support stirrups. 5-function OB bed from an ISO 13485 manufacturer.
- Product type
- Electric gynecological birth bed (5-function)
- Safe working load
- 240 kg
- Backrest adjustment
- 70±10°
- Height adjustment
- 680–900 mm
Request pricing for KL-BC110
FOB/CIF quotation, lead time, container loading plan and OEM options — from the Shanghai export office, usually within one business day.
What is the Keling KL-BC110?

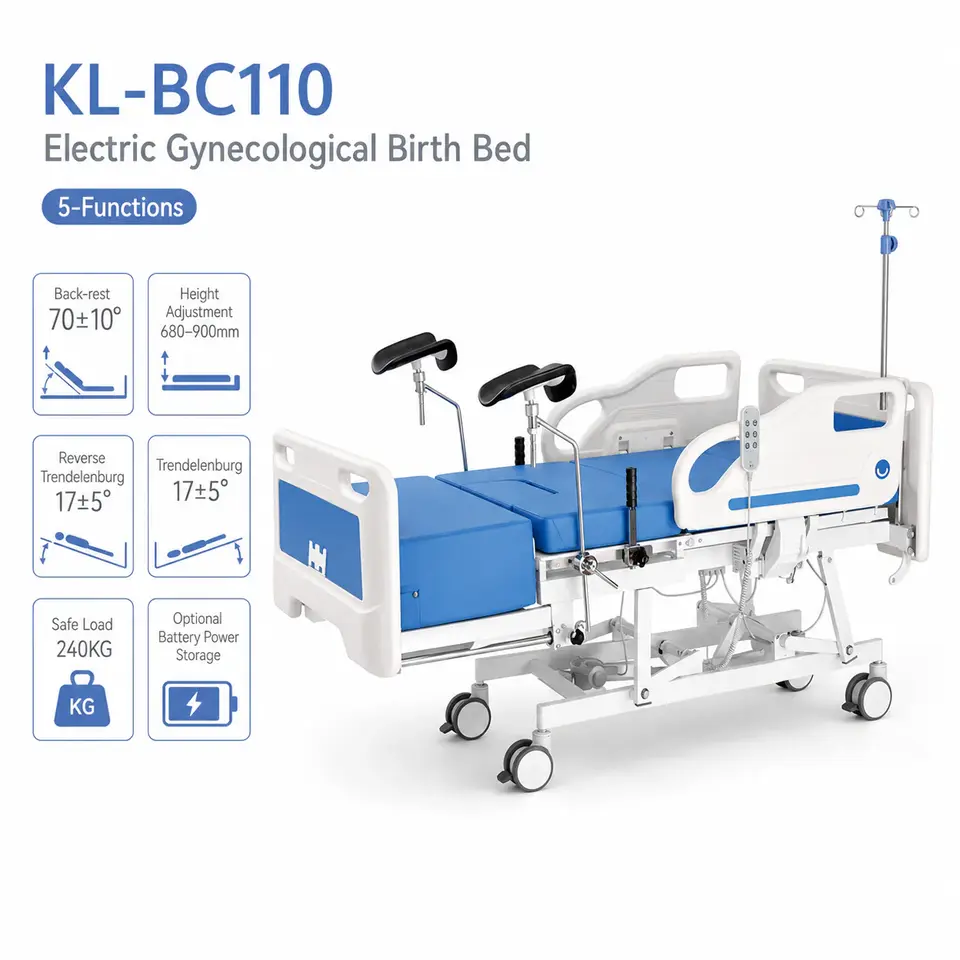

The Keling KL-BC110 is a 5-function electric gynecological birth bed with backrest adjustment to 70±10°, height range 680–900 mm, Trendelenburg and reverse Trendelenburg tilt of 17±5°, leg support stirrups, 240 kg safe working load and an optional battery backup. External dimensions are 2050 × 980 × (680–900) mm; bed surface is 1930 × 900 mm. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for maternity, obstetrics and gynecology departments.
Overview
The KL-BC110 electric gynecological birth bed is purpose-built for obstetrics, labor and delivery, and gynecological examination departments. Unlike standard ward beds, the KL-BC110 features a height range (680–900 mm) optimized for standing delivery team access, a wider Trendelenburg tilt range of 17±5° for obstetric clinical positioning, and dedicated leg support stirrups visible in the design that facilitate examination and active delivery procedures.

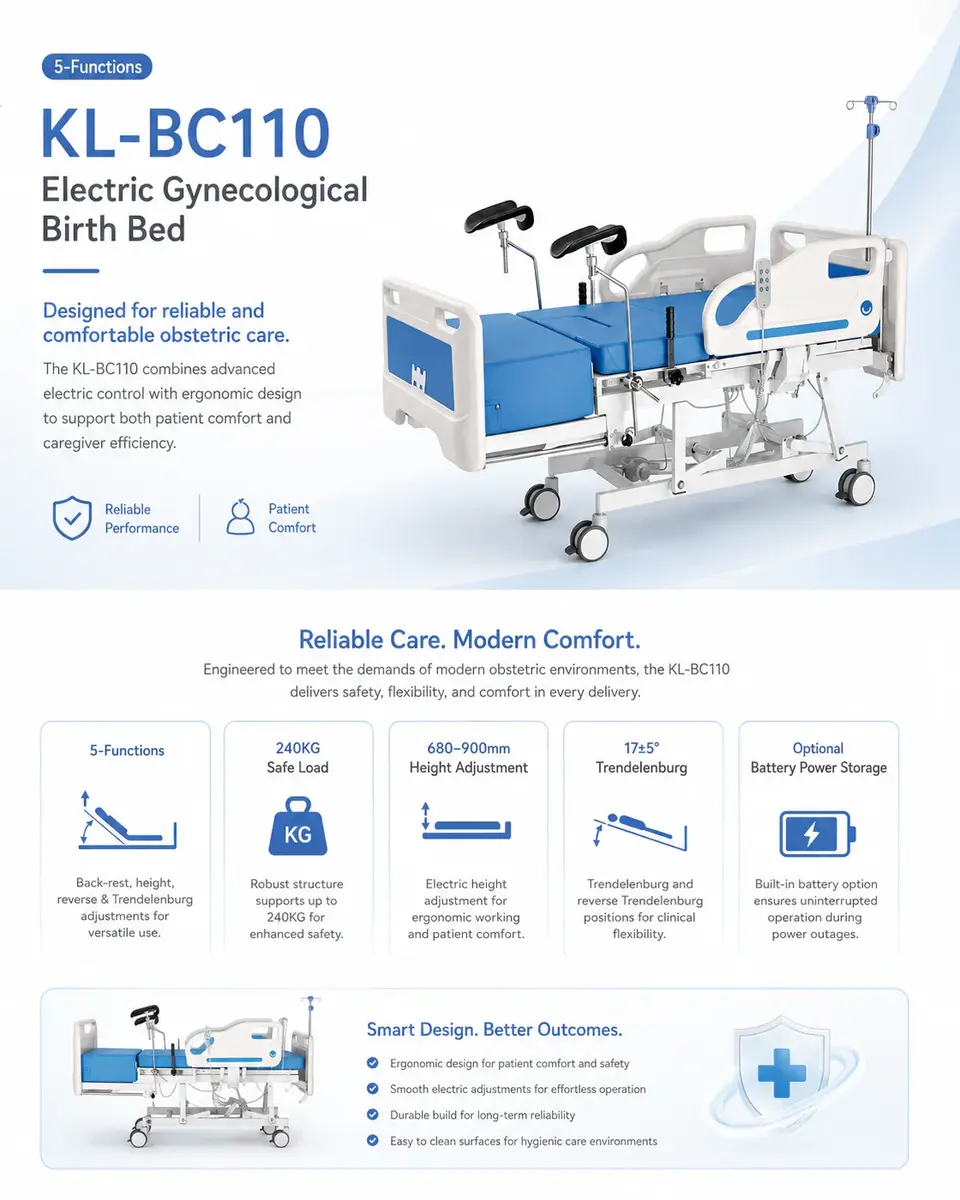

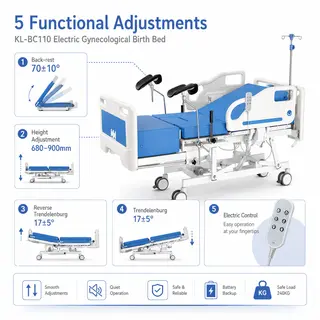

Five independently controlled electric functions — backrest elevation, height adjustment, Trendelenburg tilt, reverse Trendelenburg tilt, and associated position control — are operated via a dedicated handset or panel, allowing the delivering clinician to adjust the patient's position throughout the labor and delivery process without interrupting care. The 70±10° backrest supports the full range of positions used during labor — from semi-recumbent for monitoring to more upright positions for active pushing phases.
At 240 kg safe working load and with an optional battery backup module, the KL-BC110 is designed to remain fully functional through the full duration of a delivery without power interruption risk. The 2050 × 980 mm external footprint is suited to standard-sized obstetrics rooms, and the 1930 × 900 mm bed surface provides adequate space for obstetric and gynecological procedure setup. The KL-BC110 serves as a high-functionality delivery platform for maternity hospitals and gynecology departments seeking electric-drive delivery beds.
At a glance
- The Keling KL-BC110 is a 5-function electric gynecological birth bed designed for obstetric and gynecological clinical use.

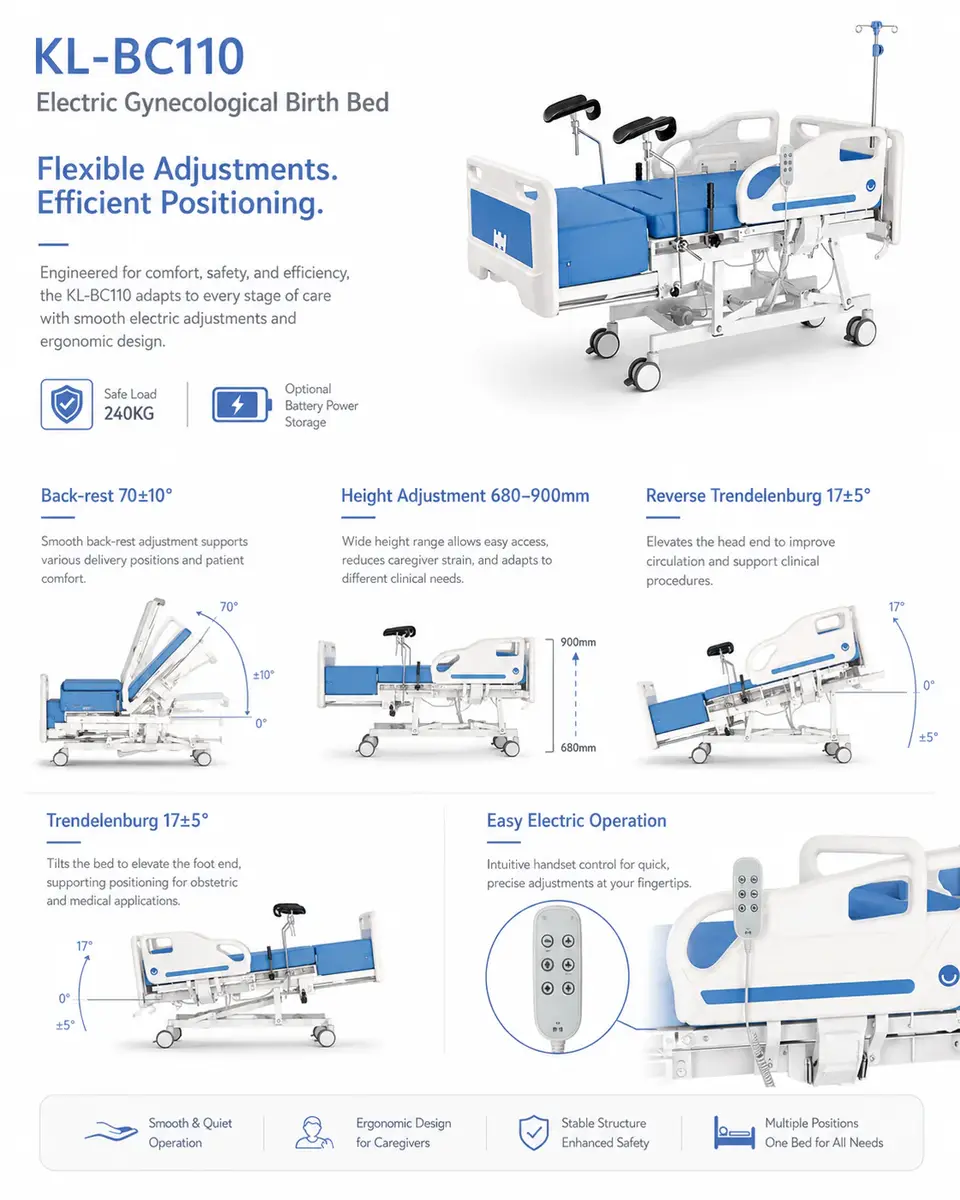

- Backrest adjusts electrically to 70±10° for delivery, post-partum and gynecological examination positions.
- Height adjustment spans 680–900 mm, a range optimized for obstetric clinical access and delivery positioning.
- Trendelenburg and reverse Trendelenburg each reach 17±5° — wider tilt angles than standard ward beds.
- Safe working load is 240 kg; optional battery power storage maintains all functions during power interruptions.
- External size is 2050 × 980 × (680–900) mm; bed surface is 1930 × 900 mm.

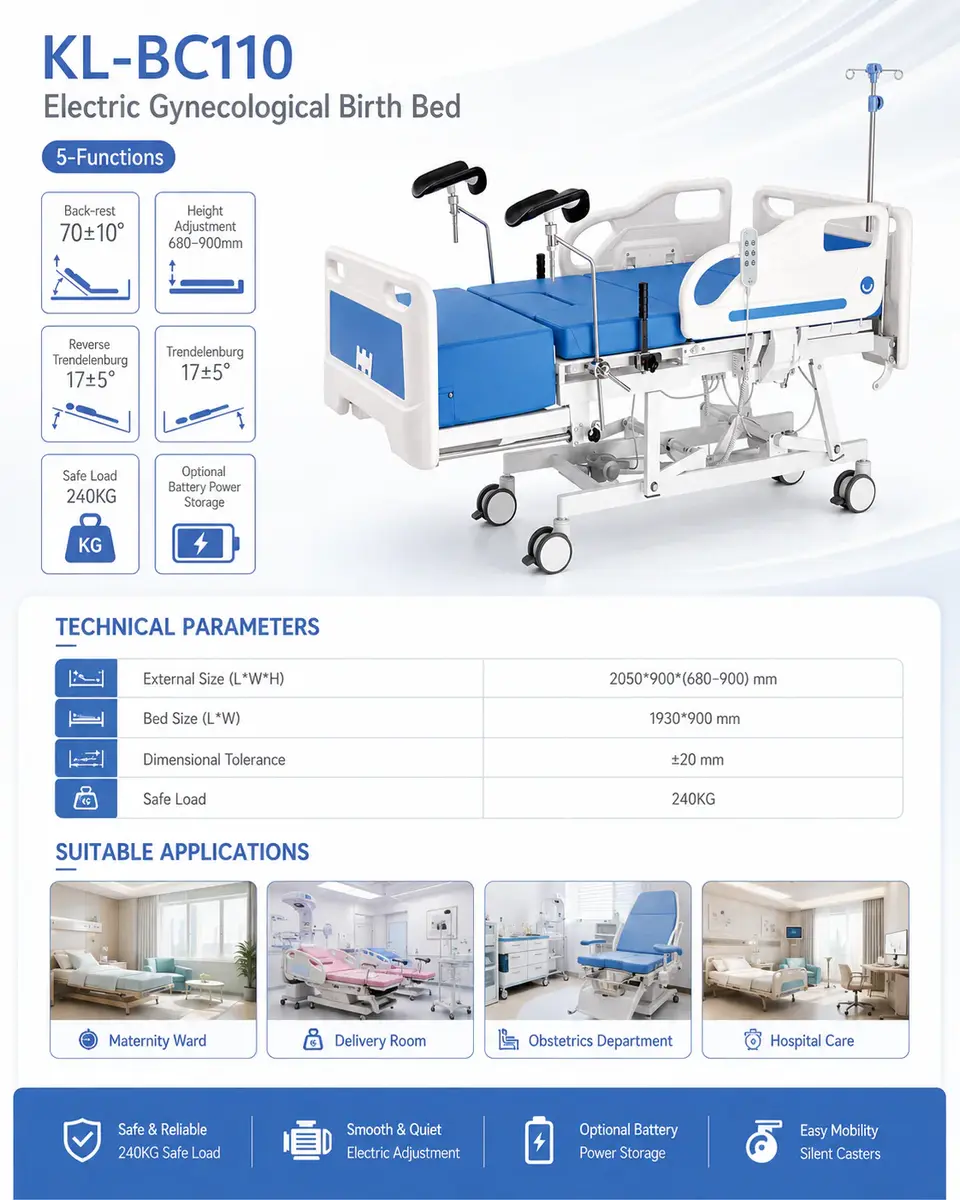

Technical specifications
| Model | KL-BC110 |
|---|---|
| Product type | Electric gynecological birth bed (5-function) |
| Backrest adjustment | 70±10° |
| Height adjustment | 680–900 mm |
| Reverse Trendelenburg | 17±5° |
| Trendelenburg | 17±5° |
| Safe working load | 240 kg |

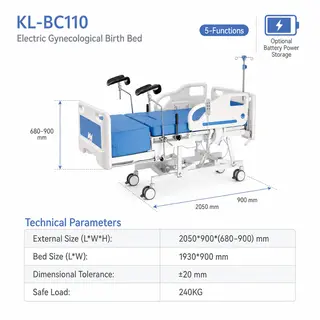

| External size (L × W × H) | 2050 × 980 × (680–900) mm |
| Bed surface size (L × W) | 1930 × 900 mm |
| Dimensional tolerance | ±20 mm |
| Optional accessories | Battery power storage |
Specifications are subject to continuous improvement and dimensional tolerances may apply. Ask our export team for the signed datasheet before issuing a purchase order or tender document. Specification data last reviewed ; source: Jiangsu Keling Medical Appliances Co., Ltd. engineering datasheets.

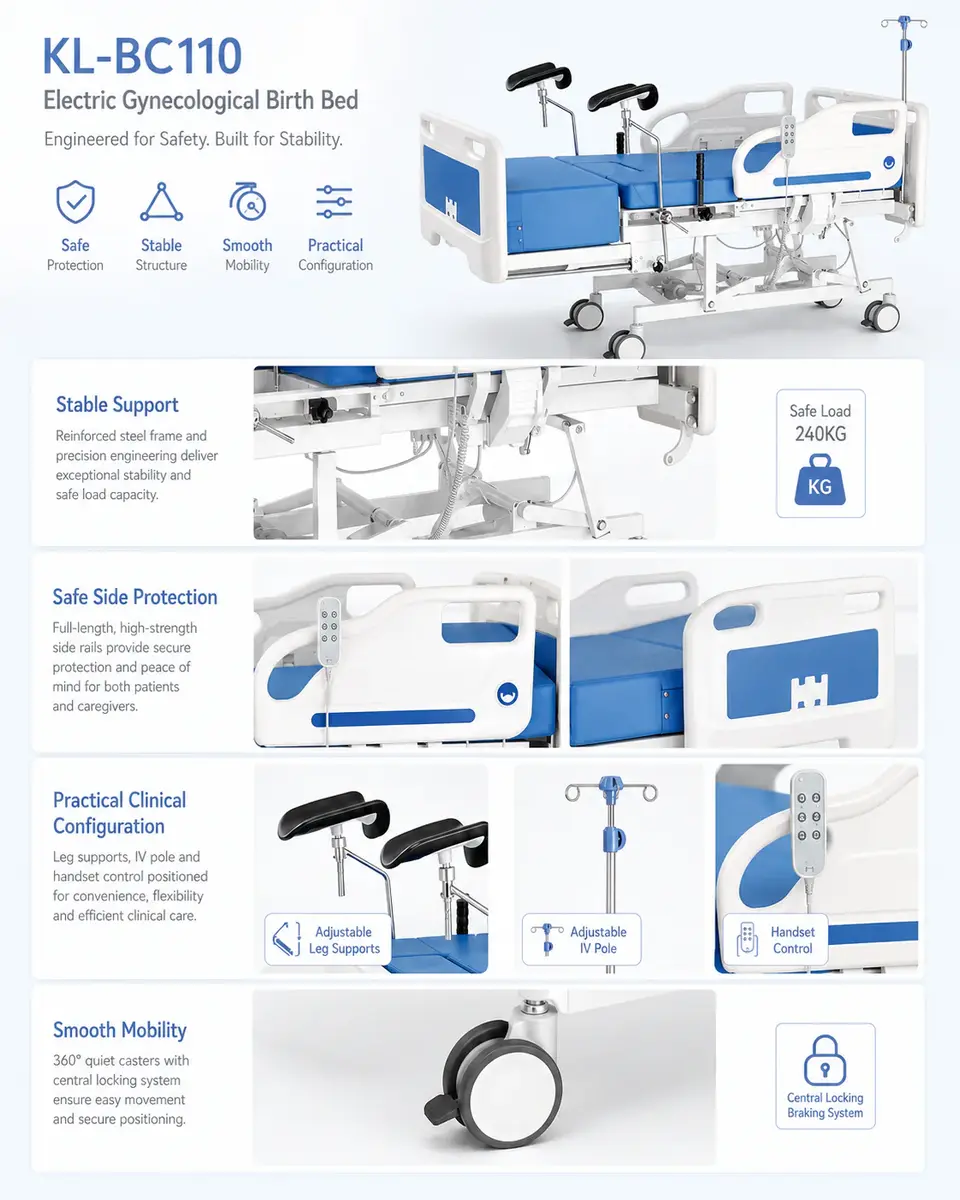

Key features
- Purpose-built gynecological birth beddesign and function specification tailored for obstetrics, labor, delivery and gynecological procedures.
- 5-Function electric actuationindependent electric control of backrest, height, Trendelenburg, reverse Trendelenburg and associated positioning.
- Backrest to 70±10°wide electric adjustment range for labor, delivery and post-partum positioning.
- Height range 680–900 mmrange optimized for delivery team standing access and obstetric clinical positioning.
- Trendelenburg / reverse Trendelenburg 17±5°wider tilt than standard ward beds for obstetric and gynecological positioning needs.

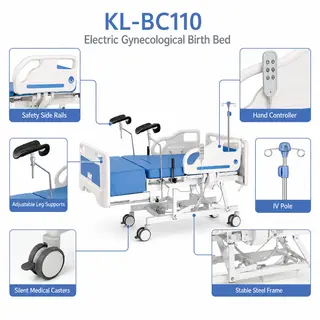

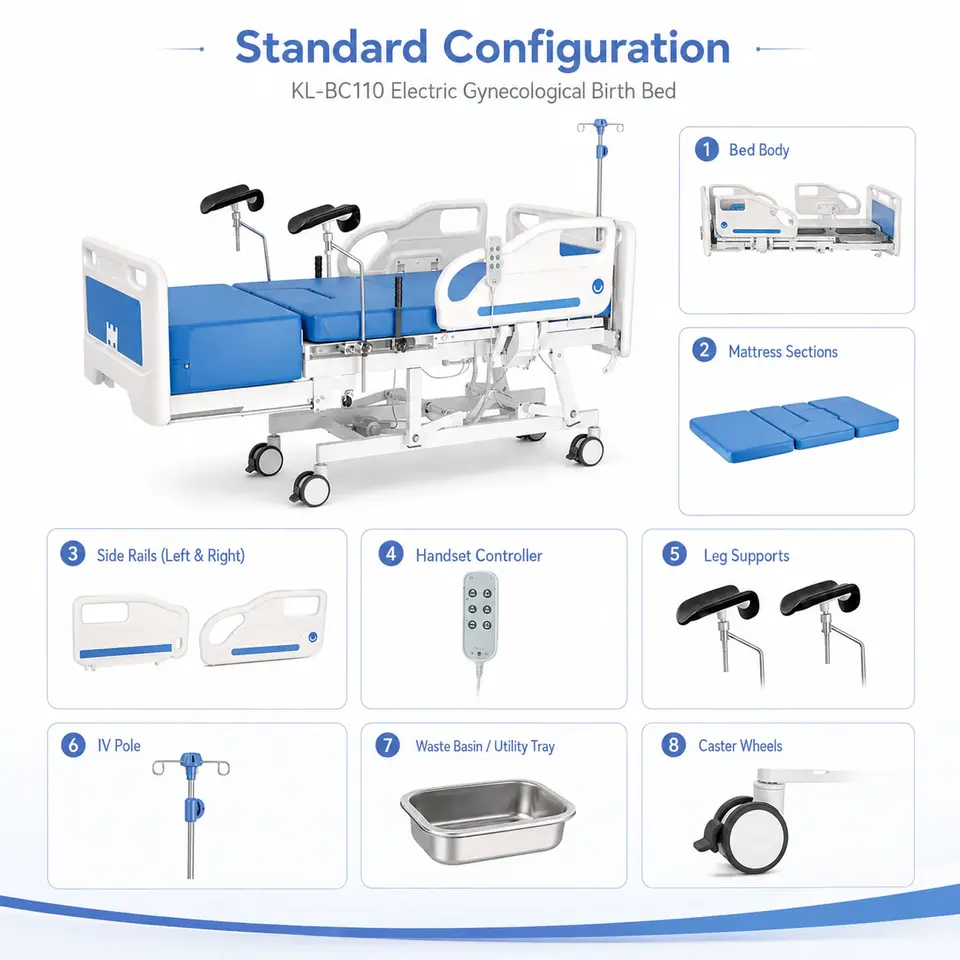

- Leg support stirrupsintegrated leg support arms for examination, delivery and gynecological procedures.
- 240 kg safe working loadhigh load rating accommodating obstetric patient range.
- Optional battery power storagemaintains all electric functions during power interruptions for uninterrupted delivery care.
Clinical applications
The KL-BC110 is designed for maternity wards, labor and delivery rooms, obstetrics departments and gynecological examination suites in hospitals, maternity centers and specialist women's health clinics. Its dedicated gynecological design, leg support stirrups and wide Trendelenburg tilt make it suitable for the full range of intrapartum and outpatient gynecological clinical procedures.
Frequently asked questions about the KL-BC110
What is the Keling KL-BC110 electric gynecological birth bed used for?
The KL-BC110 is a 5-function electric gynecological birth bed for labor, delivery and gynecological examination and procedures. It provides electric control of backrest elevation, height adjustment and bilateral Trendelenburg tilt, with leg support stirrups for delivery and examination positioning, in obstetrics and gynecology departments.
What height range does the KL-BC110 offer and why does it differ from standard ward beds?
The KL-BC110 has a height range of 680–900 mm, compared to 450–760 mm on standard ward beds. This higher range is specifically chosen for obstetric clinical use, where the delivery team works in a standing position and requires a higher patient surface for procedural access during active delivery and gynecological examination.
What Trendelenburg angles does the KL-BC110 provide?
The KL-BC110 provides Trendelenburg and reverse Trendelenburg tilt of 17±5° — 5° more than the 12±5° offered on standard ward beds — to accommodate the wider postural tilt requirements in obstetric and gynecological clinical practice.
Can the KL-BC110 be ordered for maternity hospital projects or exported?
Yes. Keling Medical supplies hospital delivery beds and gynecological equipment to maternity hospitals, healthcare distributors and procurement agencies worldwide. Wholesale, project and OEM orders are managed through the Shanghai export center. Contact Keling Medical at https://www.keling-hospitalbed.com for quotations and delivery specifications.
