KL-LJ045

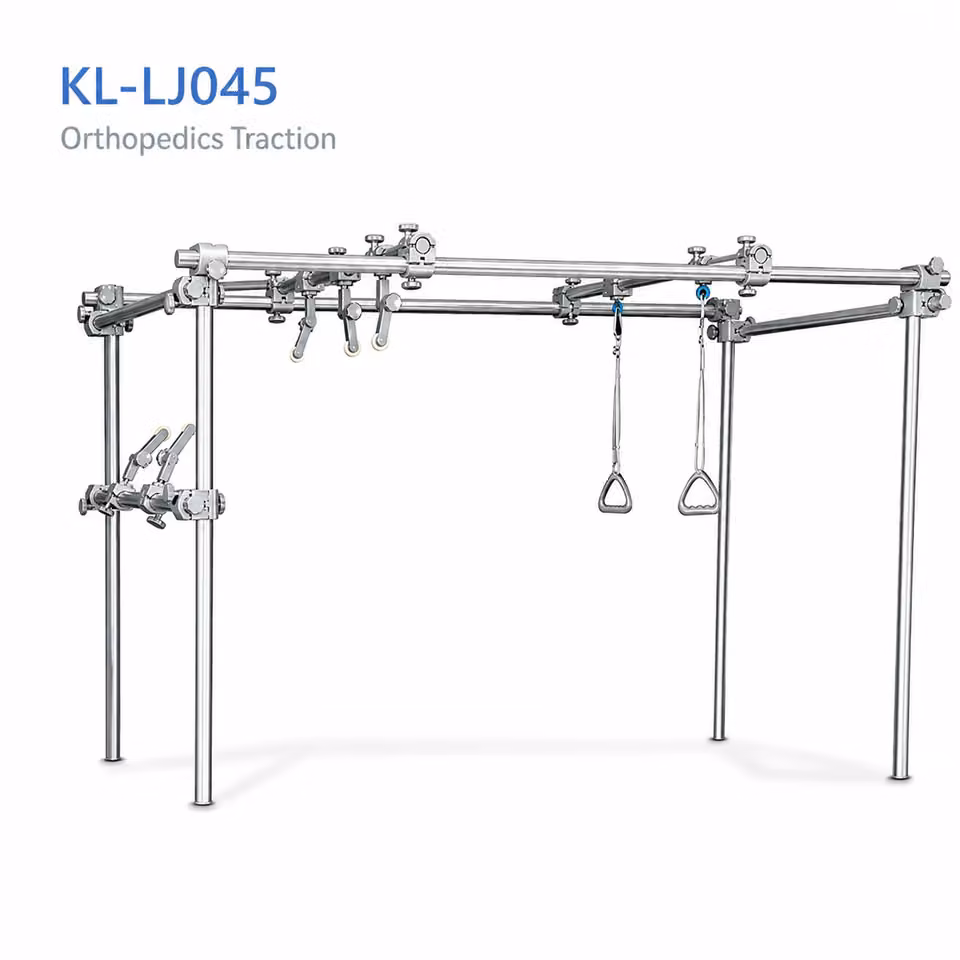

KL-LJ045 Orthopedics Traction — Overhead Traction Frame for Hospital Bed
Keling KL-LJ045 orthopedics traction frame: stainless steel overhead bar, adjustable cross arms, traction pulleys and trapeze bar. Hospital bed traction accessory from Keling Medical.
- Product type
- Orthopedics traction frame (hospital bed accessory)
- Main material
- Stainless steel
- Components
- Overhead bar, adjustable lateral arms, traction pulleys, trapeze bar, cord hooks, clamps
Request pricing for KL-LJ045
FOB/CIF quotation, lead time, container loading plan and OEM options — from the Shanghai export office, usually within one business day.
What is the Keling KL-LJ045?
The Keling KL-LJ045 is a hospital bed orthopedics traction frame consisting of a stainless steel overhead cross bar system with adjustable lateral arms, multiple traction pulleys, weight-cord hooks and a trapeze bar for patient repositioning assistance. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) as an accessory for orthopedic inpatient beds.
Overview

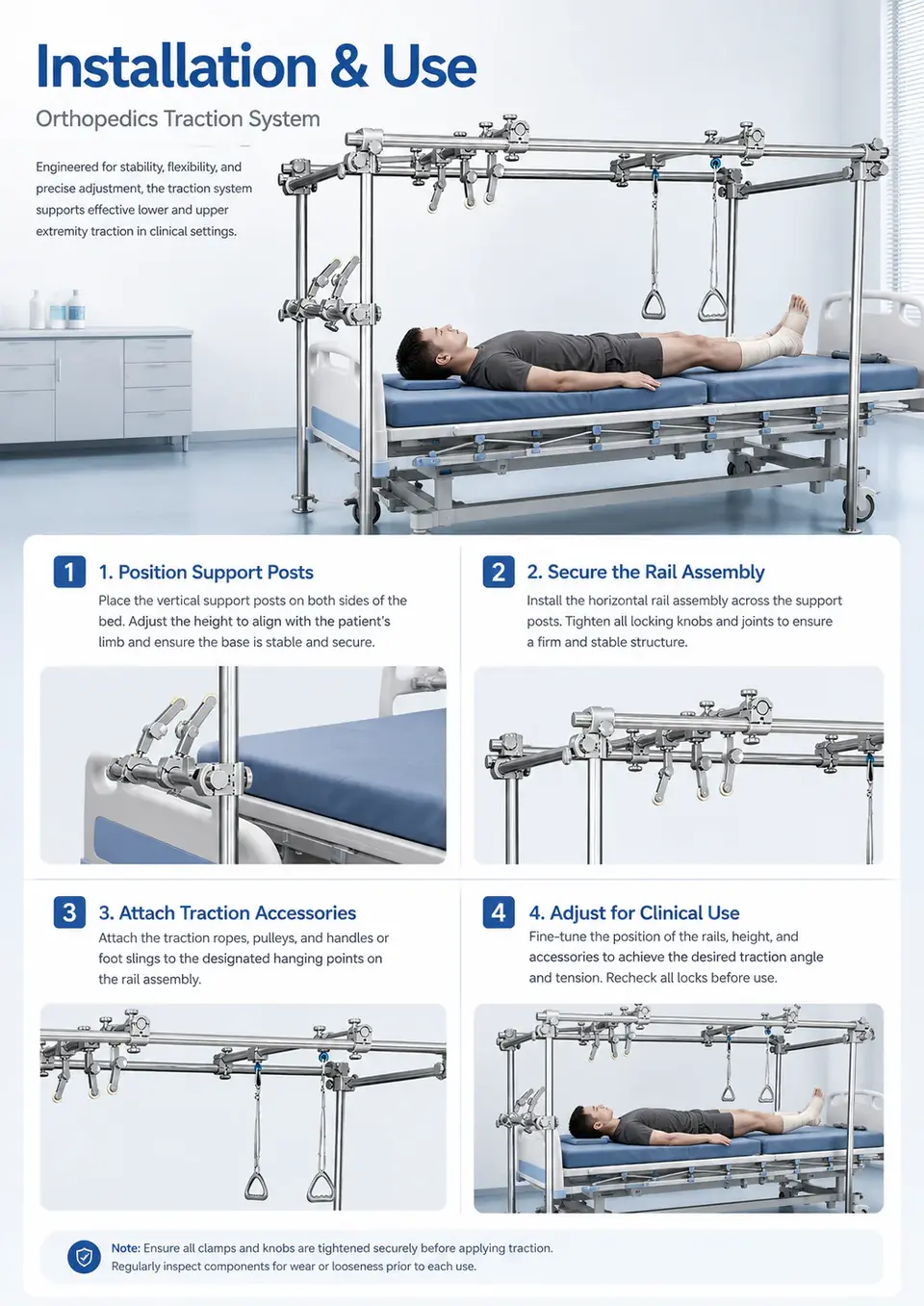

The KL-LJ045 orthopedics traction frame gives orthopedic nursing teams a purpose-designed overhead structure that integrates with the hospital bed to deliver controlled skeletal or skin traction without requiring a purpose-built traction bed. The stainless steel overhead bar spans the width of the patient's bed and is supported by lateral arms that clamp to the bed frame, converting a standard inpatient bed into a traction-capable platform.
Multiple pulleys are mounted on the overhead bar and arms, allowing traction cords to be routed in different directions and at configurable angles to apply the prescribed traction vector to the affected limb or spine. This versatility supports a range of orthopedic traction protocols — including lower-limb traction for femoral fractures and cervical traction setups — on the same frame with appropriate repositioning of the pulley assemblies.

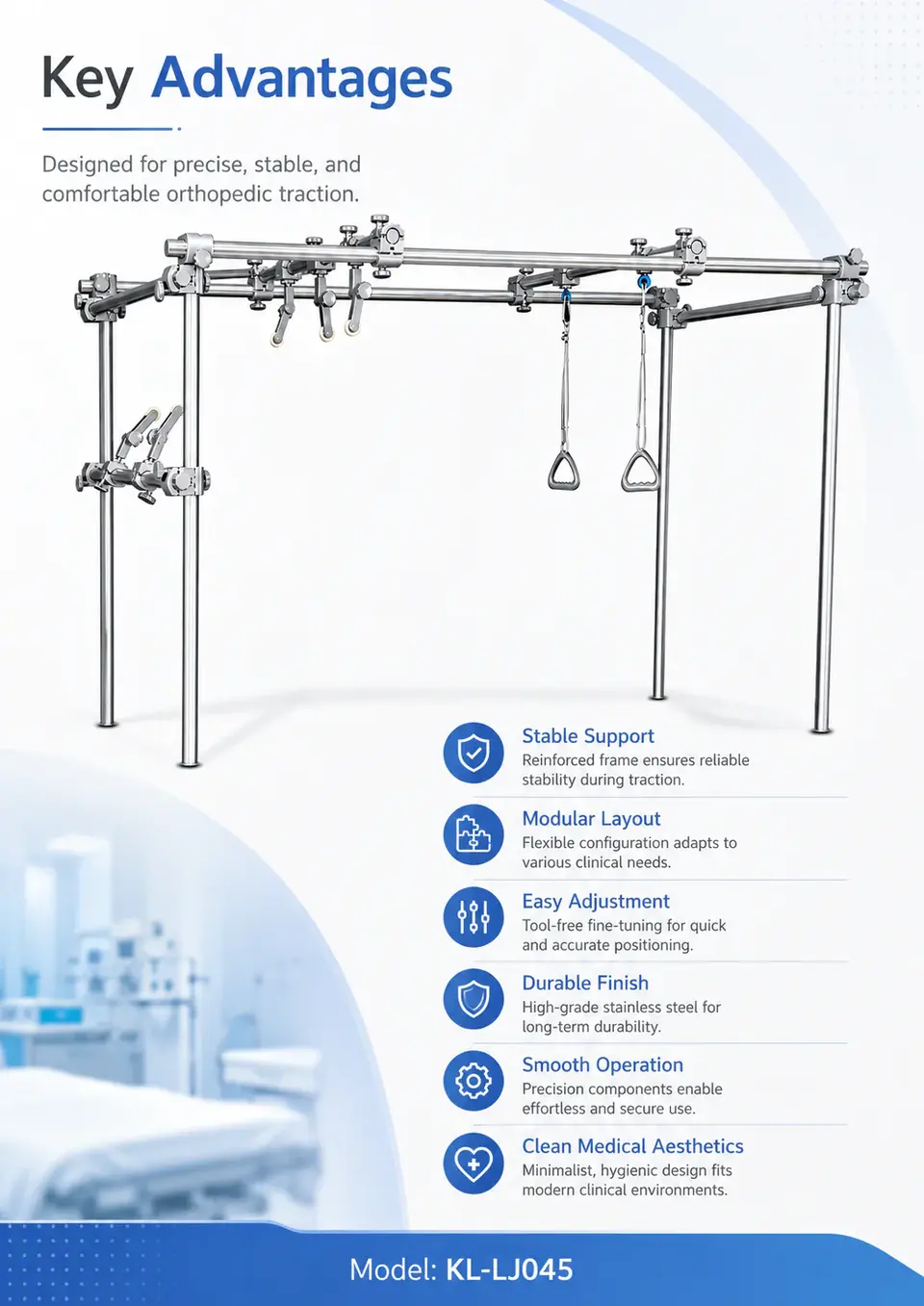

The trapeze bar suspended from the overhead frame gives patients a vital tool for independent repositioning: by gripping the trapeze, patients can lift and shift their upper body without assistance, reducing nursing demands and maintaining patient independence during what are often extended inpatient stays. The combination of functional traction delivery and patient autonomy makes the KL-LJ045 a well-rounded traction frame for orthopedic ward use.
At a glance
- The Keling KL-LJ045 is an orthopedics traction frame designed to mount over a hospital bed for skeletal or skin traction applications.
- The frame features a stainless steel overhead horizontal bar supported by adjustable lateral cross arms.
- Multiple traction pulleys are mounted on the overhead bar to guide traction cords and weight lines.
- A trapeze bar (hand grip triangle) is suspended from the frame to assist patient repositioning and upper-body movement.
- Adjustable clamps and arm extensions allow the traction frame to be configured for different traction setups.
- The KL-LJ045 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.
Technical specifications
| Model | KL-LJ045 |
|---|---|
| Product type | Orthopedics traction frame (hospital bed accessory) |
| Main material | Stainless steel |
| Components | Overhead bar, adjustable lateral arms, traction pulleys, trapeze bar, cord hooks, clamps |
Specifications are subject to continuous improvement and dimensional tolerances may apply. Ask our export team for the signed datasheet before issuing a purchase order or tender document. Specification data last reviewed ; source: Jiangsu Keling Medical Appliances Co., Ltd. engineering datasheets.

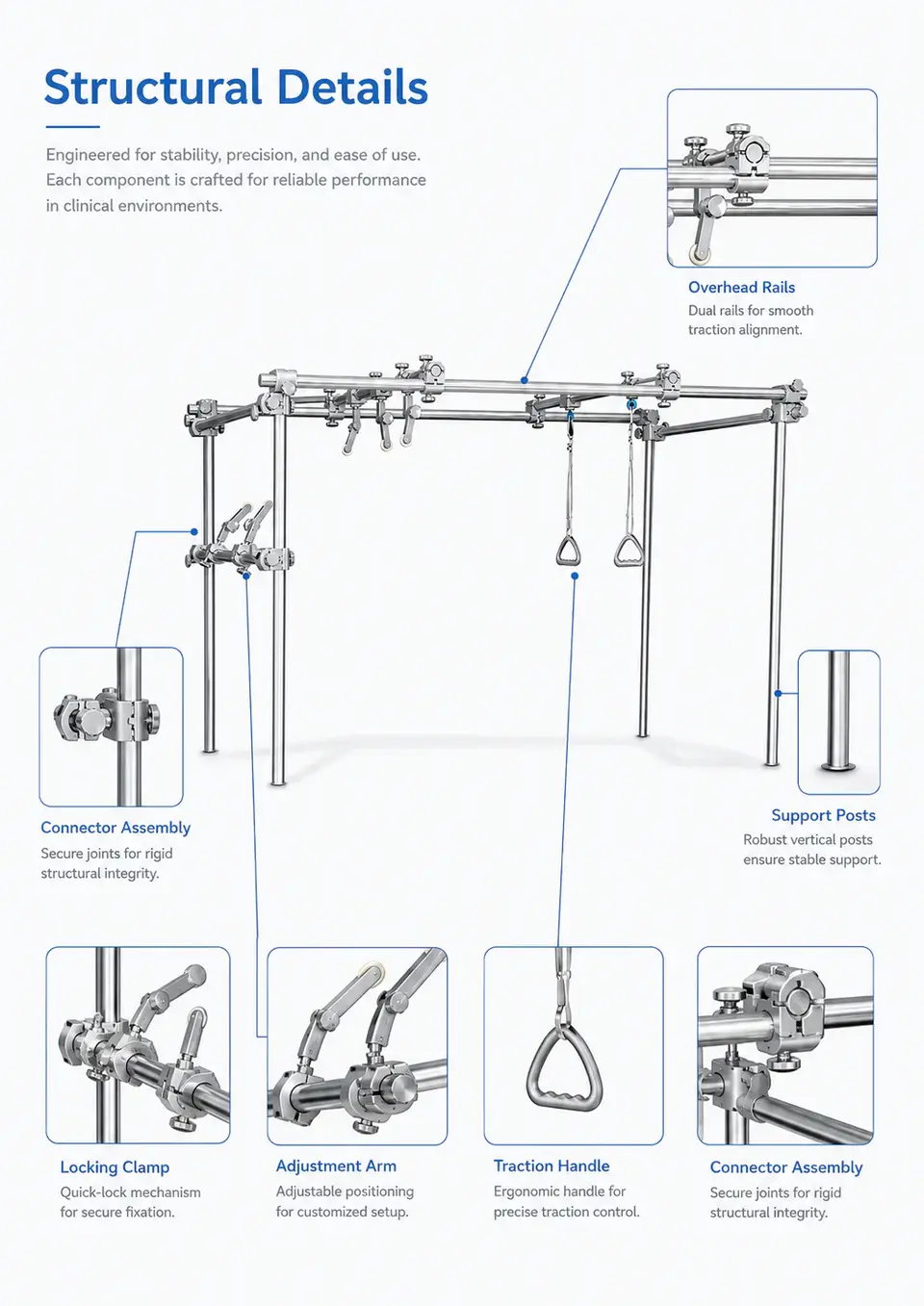

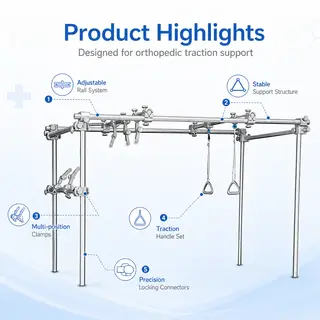

Key features

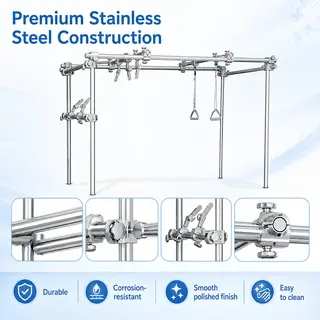

- Stainless steel overhead barcorrosion-resistant horizontal bar spanning the bed width to support traction pulley assemblies and patient assist devices.

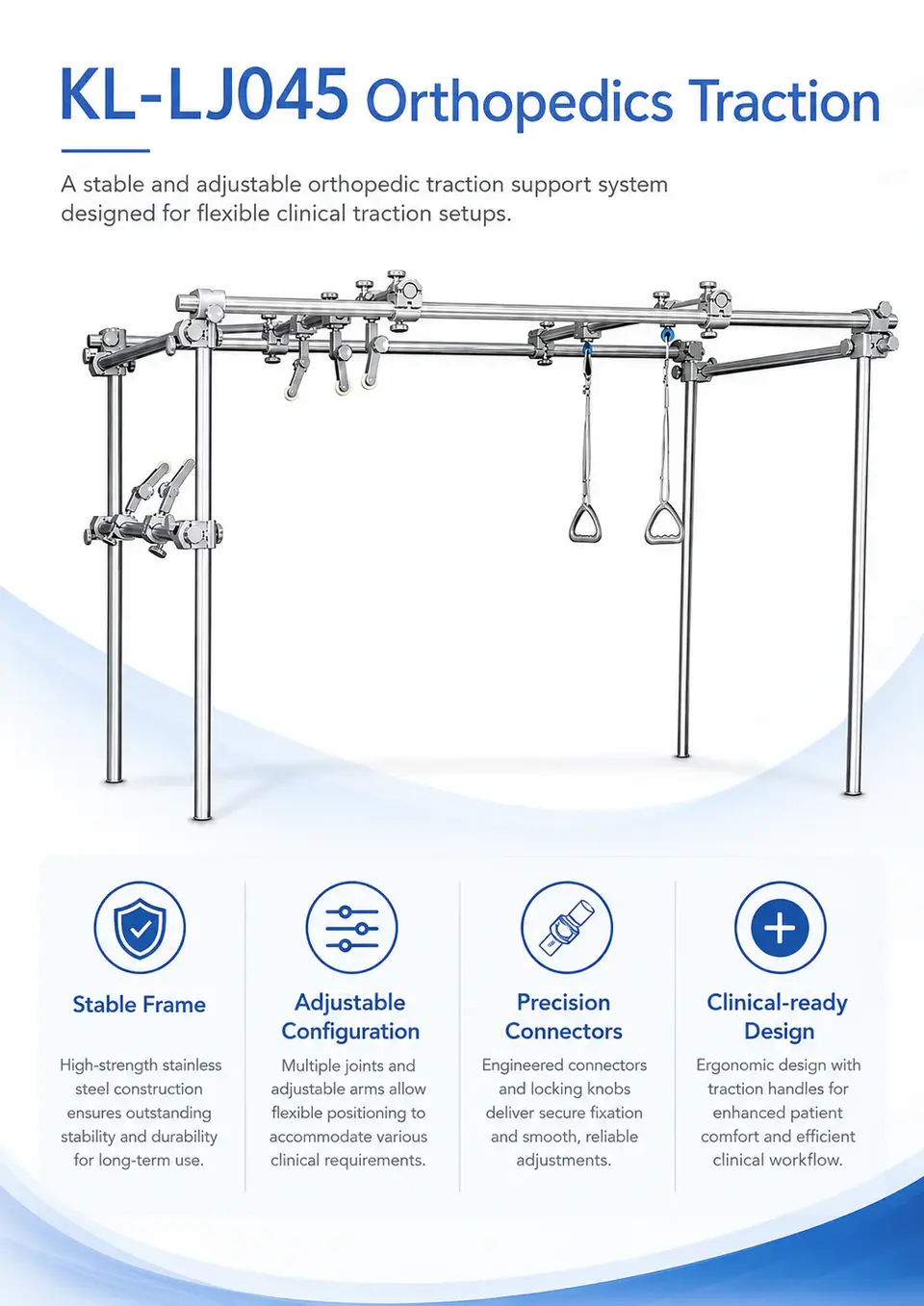

- Adjustable lateral cross armsarticulating side arms clamp to the bed frame and extend to position the overhead bar at the required height and angle.
- Multiple traction pulleysseveral pulleys mounted along the overhead bar and arms route traction cords in the prescribed direction for each clinical setup.

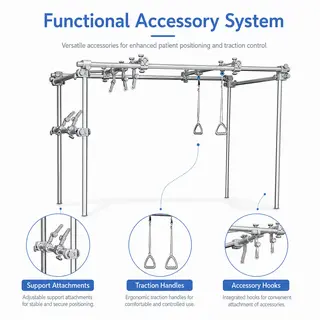

- Trapeze bartriangular hand-grip bar suspended from the overhead frame assists patients in lifting and repositioning their upper body independently.
- Weight-cord hook pointsdedicated hook attachment points on the pulleys accept traction weight cord assemblies for calibrated traction delivery.

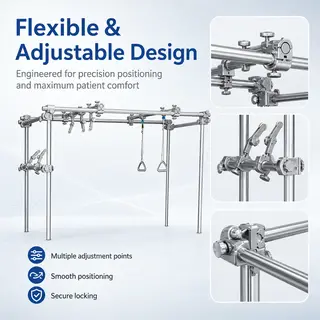

- Adjustable clamping systemclamps and extension tubes allow the frame geometry to be reconfigured for different traction protocols and bed frame widths.
Clinical applications

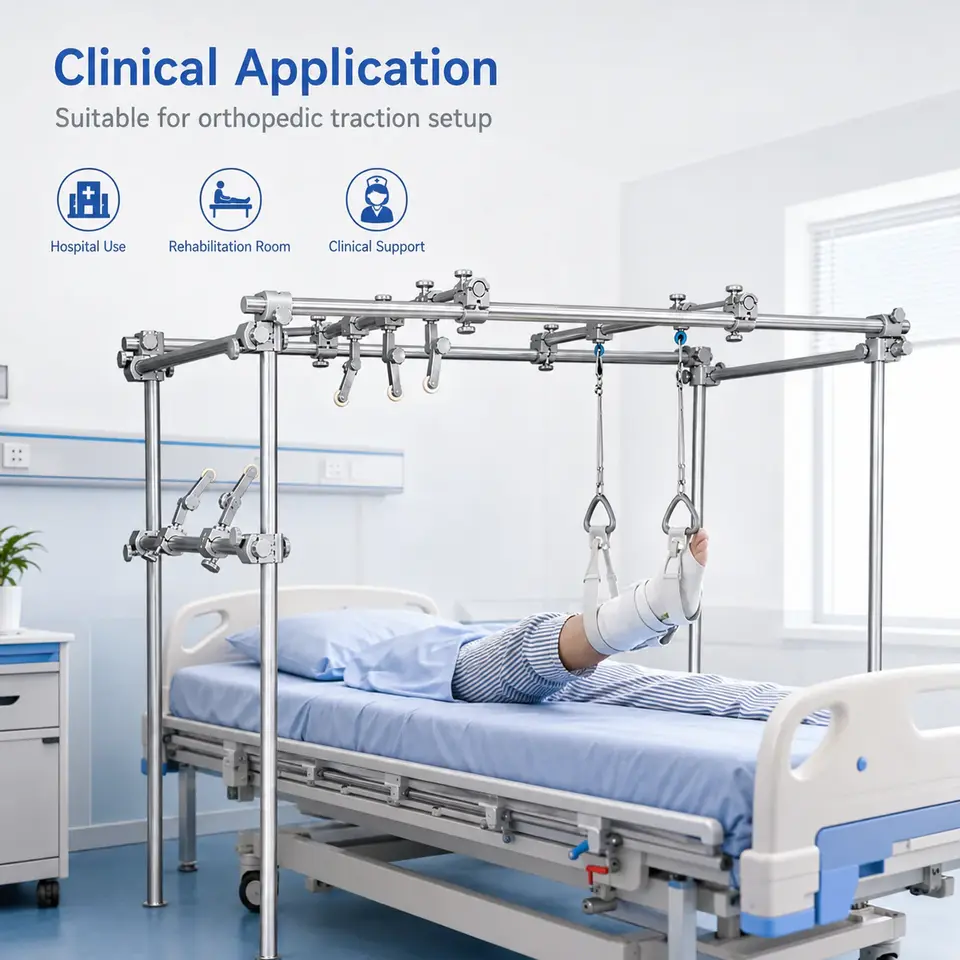

The KL-LJ045 orthopedics traction frame is used in orthopedic wards and trauma departments for skeletal and skin traction in patients with femoral, tibial, pelvic and spinal injuries requiring sustained traction. It is also used in rehabilitation settings where overhead frames assist with patient positioning and movement exercises. The frame mounts over any compatible hospital bed, allowing the clinical team to configure traction setups without a dedicated traction bed.
Frequently asked questions about the KL-LJ045
What is the Keling KL-LJ045 orthopedics traction frame used for?
The KL-LJ045 is a hospital bed accessory that mounts over a standard inpatient bed to provide an overhead traction structure. Orthopedic teams use it to deliver controlled skeletal or skin traction for limb and spinal fractures, and the integrated trapeze bar helps patients reposition themselves during extended bed rest.
What components does the KL-LJ045 include?
The frame includes a stainless steel overhead horizontal bar, adjustable lateral cross arms that clamp to the bed frame, multiple traction pulleys, weight-cord hook attachment points and a trapeze bar. The adjustable clamping system allows the frame to be reconfigured for different traction protocols and bed widths.
Can the KL-LJ045 be used with any hospital bed?
The KL-LJ045 is designed to mount over a hospital bed via clamps on the lateral arms. Compatibility depends on the bed frame rail diameter and profile. Keling Medical recommends confirming compatibility with the specific bed model in use before ordering.
Is the KL-LJ045 available for wholesale supply to hospitals and distributors?
Yes. Keling Medical supplies orthopedic bed accessories including traction frames to hospitals and distributors worldwide through its Shanghai export center. Contact Keling Medical at https://www.keling-hospitalbed.com for availability, pricing and export documentation.
