KL-HL001 Bed Rail — Aluminum and Stainless Steel Side Rails in Four Configurations
Keling KL-HL001 hospital bed rail: aluminum 6-bar 1740×130 mm, aluminum 5-bar 1490×120 mm, SS 6-bar 1750×135 mm, SS 4-bar 1480×130 mm. Four variants for ward bed safety.
- Configurations
- 4 variants — see specifications
- Product type
- Hospital bed side rail (guard rail)
Request pricing for KL-HL001
FOB/CIF quotation, lead time, container loading plan and OEM options — from the Shanghai export office, usually within one business day.
What is the Keling KL-HL001?
The Keling KL-HL001 is a hospital bed side rail accessory offered in four variants: aluminum rail with 6 bars (1740 × 130 mm), aluminum rail with 5 bars (1490 × 120 mm), stainless steel rail with 6 bars (1750 × 135 mm) and stainless steel rail with 4 bars (1480 × 130 mm). Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) as a patient safety accessory for hospital and nursing beds.
Overview
The KL-HL001 bed rail range gives hospital procurement teams a comprehensive selection of side guard rails for inpatient beds. Available in both aluminum and stainless steel, and in either 4-bar, 5-bar or 6-bar ladder configurations, the KL-HL001 covers the primary fall-prevention requirements for general wards, ICUs and nursing facilities without requiring separate sourcing from multiple suppliers.

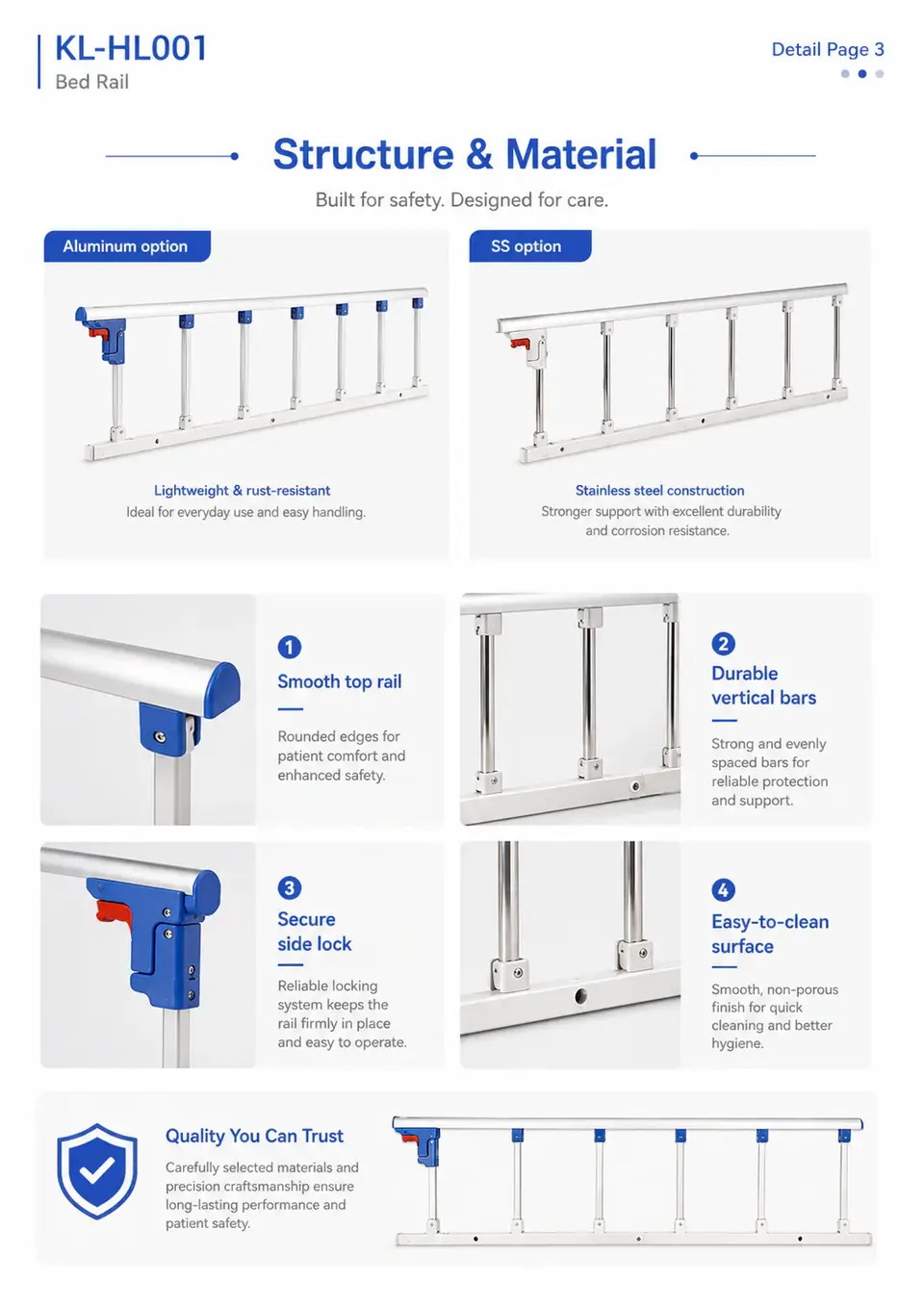

Aluminum variants offer a lightweight, corrosion-resistant option that reduces the overall bed weight and is easy for nursing staff to operate during patient transfers or repositioning. Stainless steel variants provide additional structural rigidity and durability for high-demand clinical environments where rails are raised and lowered many times per day. The range spans lengths from 1480 mm to 1750 mm, accommodating different bed frame profiles and clinical protocols for rail coverage.
The multi-bar ladder design of each variant gives patients a gripping surface for repositioning while the open bar structure allows nursing staff visual and physical access to the patient without fully lowering the rail. All four variants share the same product family, enabling hospitals to mix configurations across different bed types while managing a single accessory model number.
At a glance
- The Keling KL-HL001 is a hospital bed side rail (guard rail) accessory for patient fall prevention.
- Four variants are available: two aluminum and two stainless steel, each with different bar counts and dimensions.
- The aluminum 6-bar rail measures 1740 × 130 mm (L × H); the aluminum 5-bar rail measures 1490 × 120 mm.
- The stainless steel 6-bar rail measures 1750 × 135 mm (L × H); the SS 4-bar rail measures 1480 × 130 mm.
- KL-HL001 rails are designed as accessories compatible with hospital nursing beds and ward beds.
- The KL-HL001 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.
Technical specifications
| Model | KL-HL001 |
|---|---|
| Product type | Hospital bed side rail (guard rail) |

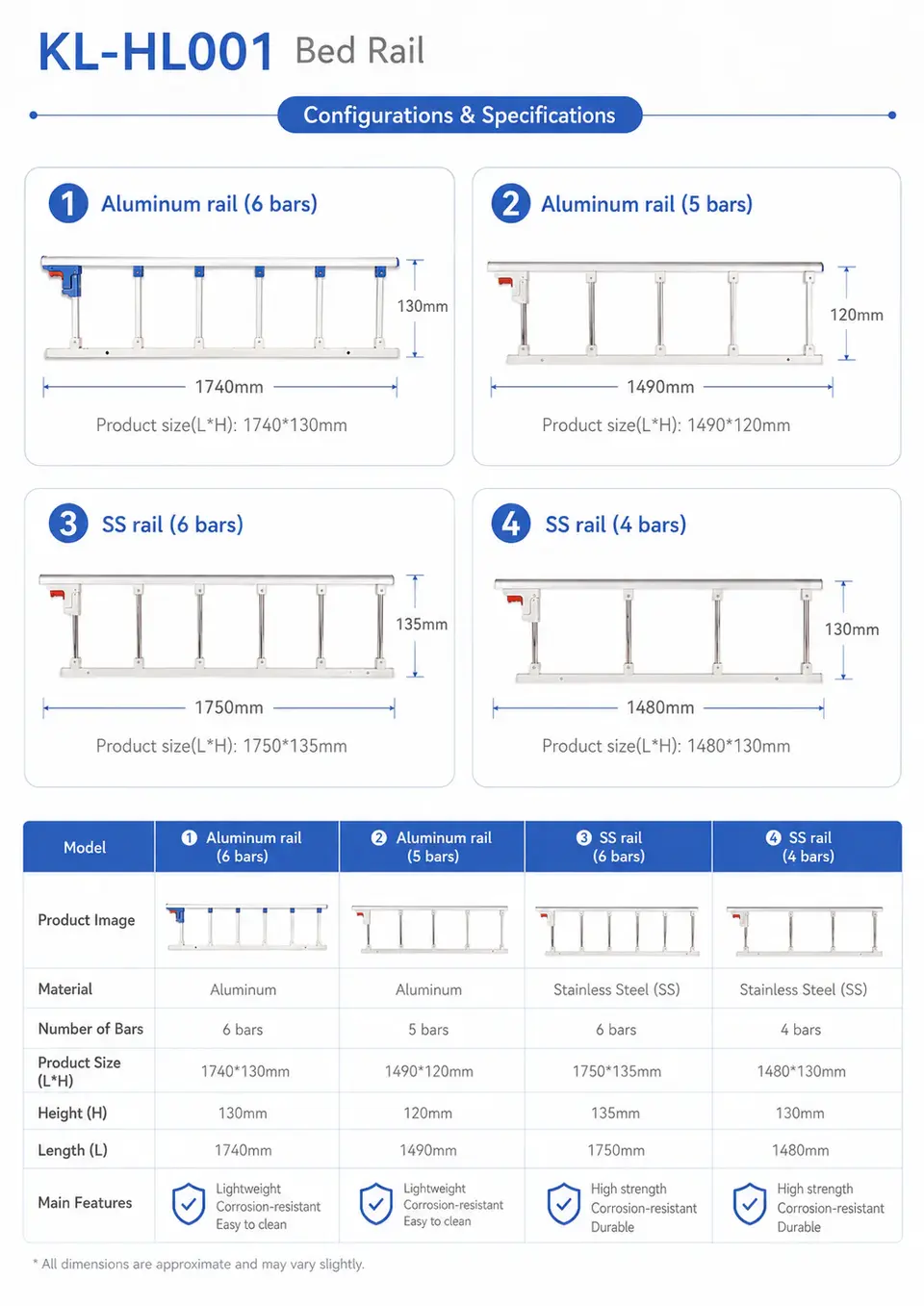

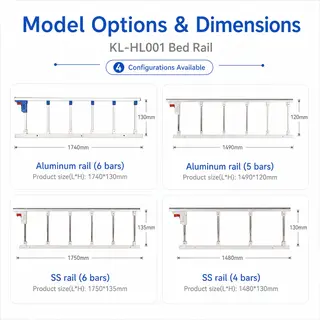

Available configurations
KL-HL001 is supplied in 4 versions. Quote the version number or describe the fitting you need and we will confirm compatibility with your bed model.

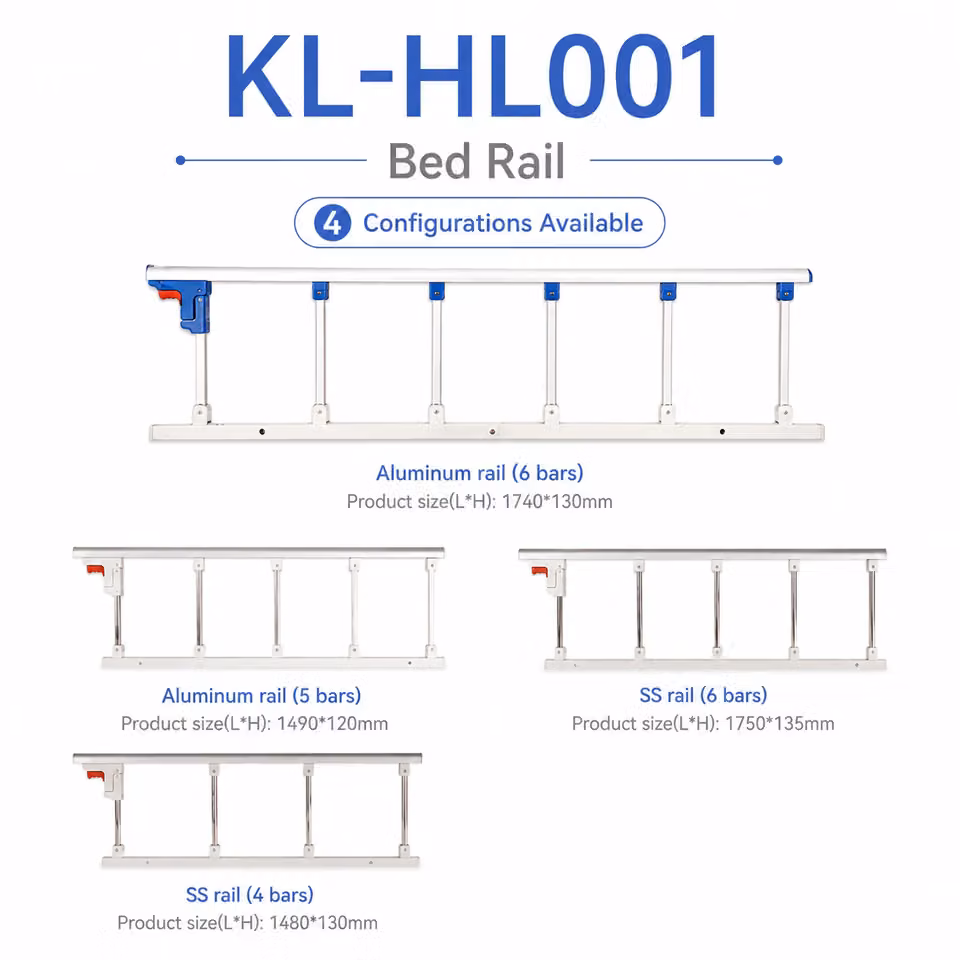

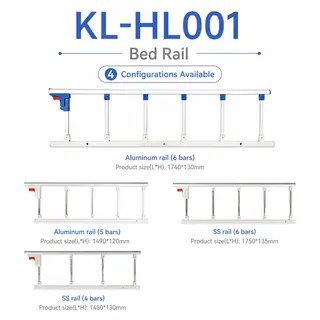

- Version 1 — Aluminum rail, 6 bars — 1740 × 130 mm (L × H)
- Version 2 — Aluminum rail, 5 bars — 1490 × 120 mm (L × H)
- Version 3 — Stainless steel rail, 6 bars — 1750 × 135 mm (L × H)
- Version 4 — Stainless steel rail, 4 bars — 1480 × 130 mm (L × H)
Specifications are subject to continuous improvement and dimensional tolerances may apply. Ask our export team for the signed datasheet before issuing a purchase order or tender document. Specification data last reviewed ; source: Jiangsu Keling Medical Appliances Co., Ltd. engineering datasheets.
Key features
- Four rail configurationsaluminum (5-bar and 6-bar) and stainless steel (4-bar and 6-bar) variants within a single model number for unified procurement.
- Aluminum 6-bar rail, 1740 × 130 mmlong-length lightweight aluminum rail with six-bar ladder for maximum side coverage and patient grip.
- Aluminum 5-bar rail, 1490 × 120 mmshorter aluminum option for beds requiring narrower side coverage or lighter rail weight.
- SS 6-bar rail, 1750 × 135 mmfull-length stainless steel rail offering high rigidity and corrosion resistance for demanding clinical use.
- SS 4-bar rail, 1480 × 130 mmcompact stainless steel rail suitable for beds where a shorter rail length is specified.

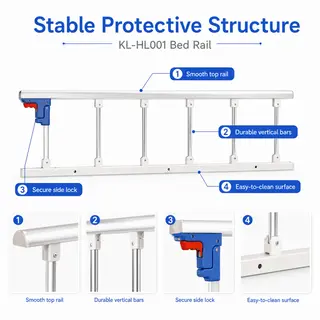

- Open ladder bar designmulti-bar structure provides patient hand-hold points while retaining clear nursing access to the patient without fully removing the rail.

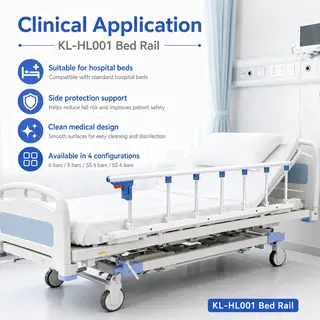

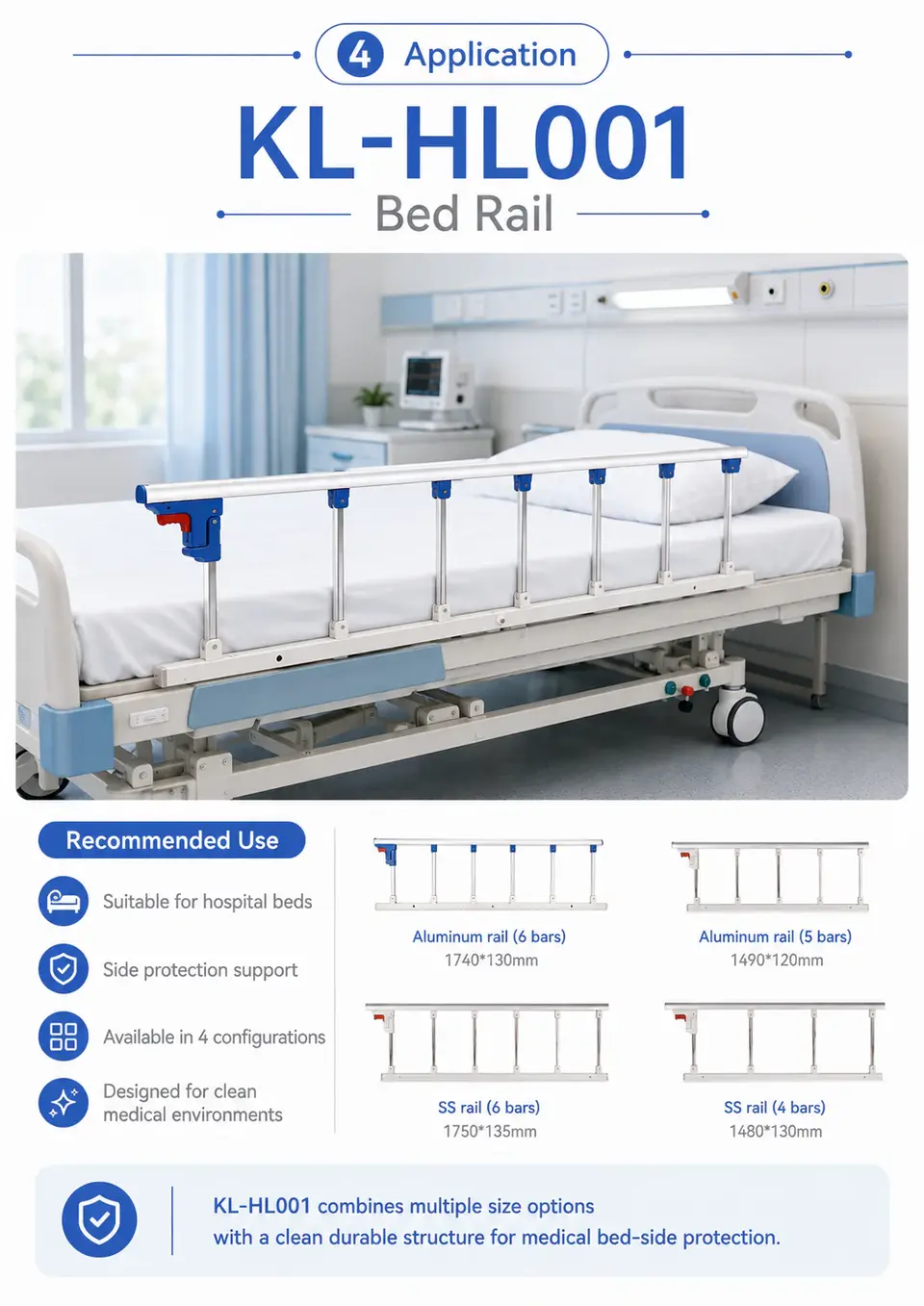

Clinical applications
KL-HL001 bed rails are used as patient fall-prevention accessories on hospital inpatient beds across general wards, surgical recovery bays, ICUs, HDUs and nursing homes. They are compatible with Keling Medical nursing beds such as the KL-BC130 and KL-BC131 and can be specified for both new bed orders and retrofitting to existing ward beds.
Frequently asked questions about the KL-HL001
What is the Keling KL-HL001 bed rail used for?
The KL-HL001 is a hospital bed side rail used to prevent patient falls and provide hand-hold support for repositioning in bed. It attaches to the bed frame and can be raised or lowered by nursing staff as required during care procedures or patient transfers.
What are the sizes and materials available in the KL-HL001 range?
Four variants are available: an aluminum 6-bar rail (1740 × 130 mm), an aluminum 5-bar rail (1490 × 120 mm), a stainless steel 6-bar rail (1750 × 135 mm) and a stainless steel 4-bar rail (1480 × 130 mm). Buyers can select the material and bar count appropriate for their specific bed model and clinical setting.

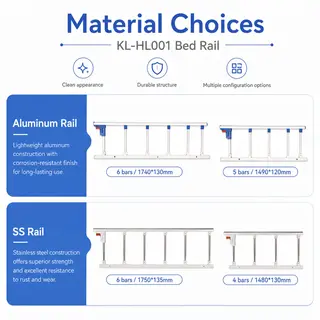

What is the difference between the aluminum and stainless steel variants?
Aluminum variants are lighter, reducing bed weight and ease of rail operation, and are corrosion-resistant — suitable for most ward environments. Stainless steel variants offer greater structural rigidity and hardwearing durability for high-frequency use environments such as ICUs where rails are operated many times each day.
Can KL-HL001 rails be ordered alongside Keling Medical hospital beds?
Yes. KL-HL001 rails can be specified as accessories in hospital bed procurement packages through Keling Medical's Shanghai export center. Contact Keling Medical at https://www.keling-hospitalbed.com to discuss bed and accessory bundle pricing for ward fit-out projects.
